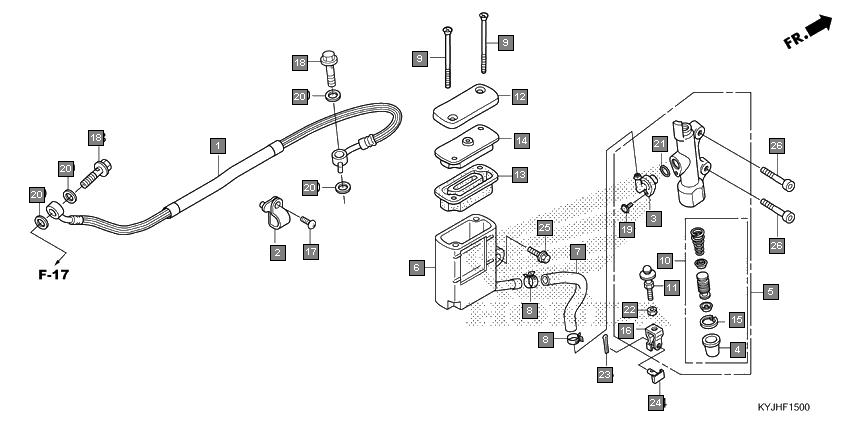

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 43310KYJT01 | HOSE COMP., RR. BRAKE | 1 |
| 2 | 43468KYJ710 | GUIDE, BRAKE HOSE | 1 |
| 3 | 43503MR7006 | CONNECTOR | 1 |
| 4 | 43504MB2006 | BOOT COMP. | 1 |
| 5 | 43510KYJ711 | CYLINDER SUB ASSY., FR. BRAKE MASTER | 1 |
| 6 | 43511KYJ901 | CUP, MASTER CYLINDER OIL | 1 |
| 7 | 43512KYJ901 | HOSE, RR. MASTER CYLINDER | 1 |
| 8 | 43514KS6701 | CLAMP, MASTER CYLINDER OIL HOSE | 2 |
| 9 | 43516KYJ901 | SCREW, FLAT, 4X60 | 2 |
| 10 | 43520MJ6315 | PISTON SET, MASTER CYLINDER (NISSIN) | 1 |
| 11 | 43530KV3701 | ROD COMP., PUSH | 1 |
| 12 | 45513KWN671 | CAP, MASTER CYLINDER | 1 |
| 13 | 45520GW0911 | DIAPHRAGM | 1 |
| 14 | 45521GW0911 | PLATE, DIAPHRAGM | 1 |
| 15 | 46182MELD21 | CIRCLIP | 1 |
| 16 | 46504MAL601 | JOINT, BRAKE ROD | 1 |
| 17 | 90104KPP900 | SCREW, PAN, 5X12 | 1 |
| 18 | 90145MS9612 | BOLT, OIL, 10X22 | 2 |
| 19 | 90508K21921 | SCREW-WASHER, 4X12 | 1 |
| 20 | 90545300000 | WASHER, OIL BOLT | 4 |
| 21 | 91212422006 | O-RING, 14.8X2.4 | 1 |
| 22 | 94002080000S | NUT, HEX., 8MM | 1 |
| 23 | 9420120150 | PIN, SPLIT, 2.0X15 | 1 |
| 24 | 9501554000 | PIN D, JOINT | 1 |
| 25 | 960010601407 | BOLT, FLANGE, 6X14 | 1 |
| 26 | 966000602000 | BOLT, SOCKET, 6X20 | 2 |
