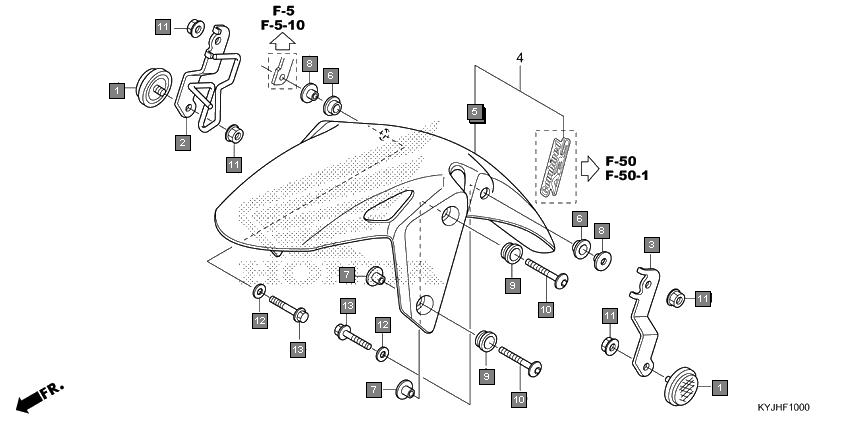

Motorcycles CBR250R CBR250RJ Frame Front fender
Ref.No. Part No. Description Oty
1 33740KTE601 REFLECTOR, FR. SIDE REFLEX 2
2 60114KYJT00 STAY COMP., R. FR. SIDE REFLECTOR 1
3 60115KYJT00 STAY COMP., L. FR. SIDE REFLECTOR 1
4 61100KPPT00ZN FENDER, FR. *PB123PA*..PEARL SIREN BLUE-A 1
5 61100KPPT00YK FENDER, FR. *NH303M* MAT AXIS GRAY METALLIC 1
6 61100KPPT00YJ FENDER, FR. *Y206P* PEARL SPORTS YELLOW 1
7 61100KPPT00ZK FENDER, FR. *R321* SPORTS RED 1
8 61103KPF910 RUBBER, FR. FENDER MOUNTING 2
9 61103KRY900 COLLAR A, FR. FENDER 4
10 61105KPF910 COLLAR, FR. FENDER MOUNTING 2
11 61105KRY900 RUBBER, FR. FENDER MOUNTING 4
12 90130KYJ900 SCREW, PAN, 6X22 4
13 90302KTE911 NUT, FLANGE SPECIAL, 6MM (SIMMONDS MARSHALL) 4
14 90485286000 WASHER, 6MM 2
15 960010603500 BOLT, FLANGE, 6X35 2
