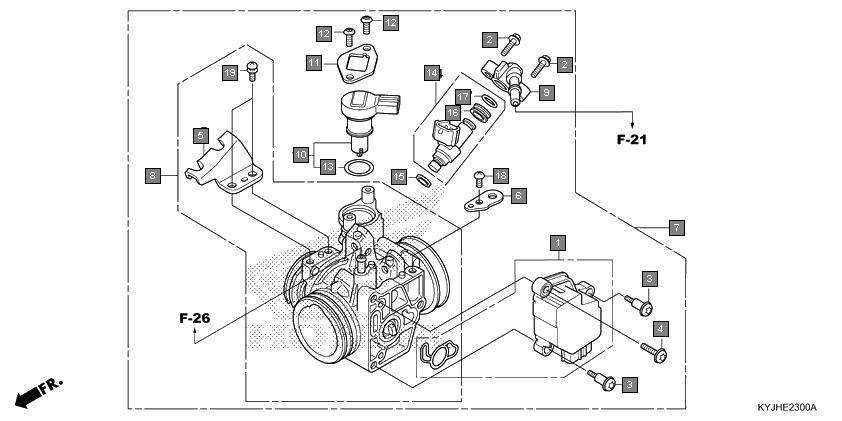

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 16060KZZD21 | SENSOR SET | 1 |
| 2 | 16080KPH701 | BOLT, FLANGE, 5X20 | 2 |
| 3 | 16081KYJ901 | SCREW, TORX, 5X8.7 | 2 |
| 4 | 16082KYJ901 | SCREW, TORX, 5X17 | 1 |
| 5 | 16169MFR671 | STAY, WIRE | 1 |
| 6 | 16196HP6A01 | STAY, HARNESS CLAMPER | 1 |
| 7 | 16400KYJUB1 | THROTTLE BODY ASSY.(9TA A) | 1 |
| 8 | 16410KYJUB1 | BODY SET | 1 |
| 9 | 16422HP5602 | JOINT, INJECTOR | 1 |
| 10 | 16430KYJ901 | VALVE SET, IDLE AIR CONTROL | 1 |
| 11 | 16432HP5601 | PLATE, IDLE AIR CONTROL VALVE | 1 |
| 12 | 16433HN8A61 | SCREW, TORX | 2 |
| 13 | 16435HN8A61 | O-RING, 17.8X1.9 | 1 |
| 14 | 16450MFE641 | INJECTOR ASSY., FUEL | 1 |
| 15 | 16472MCW000 | SEAL RING, INJECTOR | 1 |
| 16 | 16473P7A004 | CUSHION RING, INJECTOR | 1 |
| 17 | 91301P7A004 | O-RING, 7.8X1.9 | 1 |
| 18 | 93500050101H | SCREW, PAN, 5X10 | 1 |
| 19 | 938920501218 | SCREW-WASHER, 5X12 | 2 |
