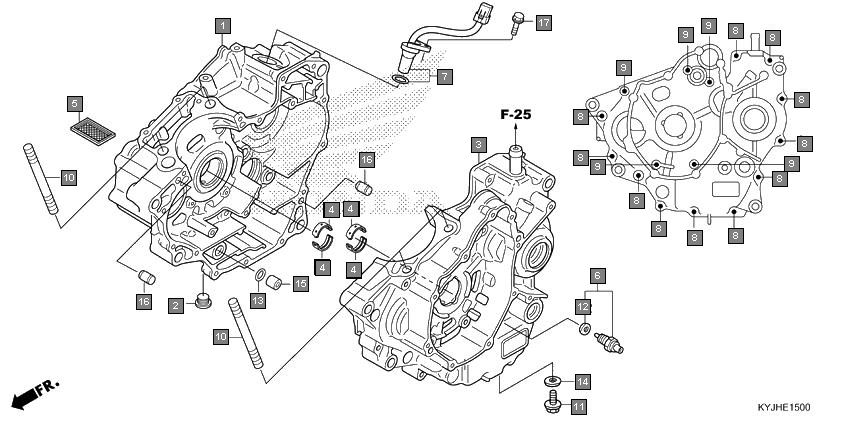

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 11100KYJ900 | CRANKCASE COMP., R. | 1 |
| 2 | 11107KYJ900 | BOLT, SEALING, 16MM | 1 |
| 3 | 11200KYJ900 | CRANKCASE COMP., L. | 1 |
| 4 | 13316KYJ305 | BEARING E, CRANKSHAFT(GREEN) (O.S.) | 4 |
| 5 | 13312KYJ901 | BEARING A, CRANKSHAFT(BLUE) | 4 |
| 6 | 13317KYJ305 | BEARING F, CRANKSHAFT(YELLOW) (O.S.) | 4 |
| 7 | 13315KYJ305 | BEARING D, CRANKSHAFT(RED) (O.S.) | 4 |
| 8 | 13318KYJ305 | BEARING G, CRANKSHAFT(PINK) (O.S.) | 4 |
| 9 | 13313KYJ901 | BEARING B, CRANKSHAFT(BLACK) | 4 |
| 10 | 13314KYJ901 | BEARING C, CRANKSHAFT(BROWN) | 4 |
| 11 | 15421KYJ900 | SCREEN, OIL FILTER | 1 |
| 12 | 35600425023 | SWITCH ASSY., NEUTRAL | 1 |
| 13 | 37700KYJ901 | SENSOR ASSY., SPEED | 1 |
| 14 | 90014KYJ900 | BOLT, FLANGE, 6X40(NSHF) | 11 |
| 15 | 90016KYJ900 | BOLT, FLANGE, 6X70(NSHF) | 5 |
| 16 | 90032KYJ900 | BOLT, STUD, 10X178 | 4 |
| 17 | 90131KRM840 | BOLT, DRAIN PLUG, 12MM | 1 |
| 18 | 90443KR0000 | WASHER, NEUTRAL SWITCH | 1 |
| 19 | 91301KYJ710 | O-RING, 11.8X1.9 | 1 |
| 20 | 9410912000 | WASHER, DRAIN PLUG, 12MM | 1 |
| 21 | 9430112160 | PIN A, DOWEL, 12X16 | 1 |
| 22 | 9430208140 | PIN B, DOWEL, 8X14 | 2 |
| 23 | 957010601800 | BOLT, FLANGE, 6X18 | 1 |
