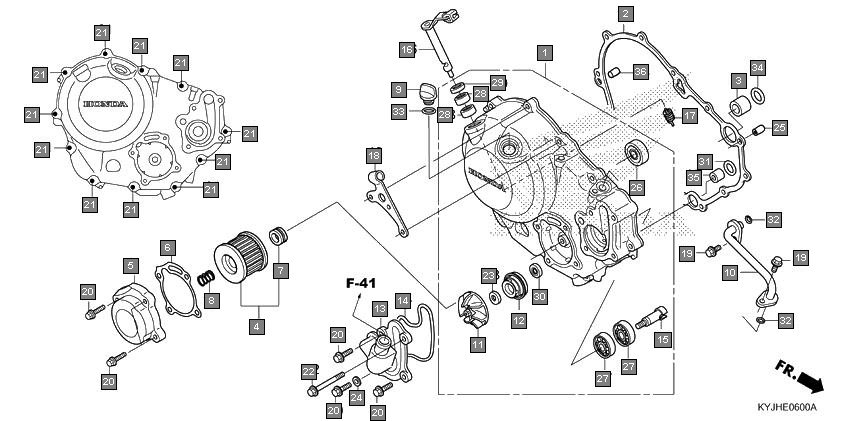

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 11300KYJUB0 | COVER ASSY., R. CRANKCASE | 1 |
2 | 11394KYJ900 | GASKET, R. CRANKCASE COVER | 1 |
3 | 15326KT7000 | COLLAR, OIL PATH, 18MM | 1 |
4 | 15410KYJ902 | ELEMENT, OIL FILTER | 1 |
5 | 15411KYJ900 | COVER, OIL FILTER | 1 |
6 | 15412KYJ901 | GASKET, OIL FILTER COVER | 1 |
7 | 15413MC8000 | RUBBER, FILTER | 1 |
8 | 15414KF0000 | SPRING, OIL FILTER ELEMENT SETTING | 1 |
9 | 15611KA4710 | CAP, OIL FILLER | 1 |
10 | 19120KYJ900 | PIPE COMP., WATER | 1 |
11 | 19215KGH900 | IMPELLER, WATER PUMP | 1 |
12 | 19217P72013 | SEAL, MECHANICAL | 1 |
13 | 19220KYJ900 | COVER COMP., WATER PUMP | 1 |
14 | 19226KYJ710 | GASKET, WATER PUMP COVER | 1 |
15 | 19241KZZD20 | SHAFT, WATER PUMP | 1 |
16 | 22810KYJ900 | LEVER COMP., CLUTCH | 1 |
17 | 22815KM7700 | SPRING, CLUTCH LEVER | 1 |
18 | 22821KYJ900 | RECEIVER, CLUTCH CABLE | 1 |
19 | 90010KYJ900 | BOLT, FLANGE, 6X16(NSHF) | 2 |
20 | 90012KYJ900 | BOLT, FLANGE, 6X25(NSHF) | 7 |
21 | 90013KYJ900 | BOLT, FLANGE, 6X30(NSHF) | 11 |
22 | 90015KYJ900 | BOLT, FLANGE, 6X60(NSHF) | 1 |
23 | 90423KW6900 | WASHER, 7X13X1.2 | 1 |
24 | 90463ML7000 | WASHER, SEALING, 6.5MM | 1 |
25 | 90702KFM900 | DOWEL PIN, 8X12 | 1 |
26 | 91009KYJ711 | BEARING, RADIAL BALL SPECIAL, 6001U | 1 |
27 | 91015KYJ711 | BEARING, RADIAL BALL, 6001 | 2 |
28 | 91022KYJ711 | BEARING, NEEDLE, 12X16X10 | 2 |
29 | 91204KK0003 | OIL SEAL, 12X18X5(ARAI) | 1 |
30 | 91202KTW901 | OIL SEAL, 12X26X5 | 1 |
31 | 91301KYJ710 | O-RING, 11.8X1.9 | 1 |
32 | 91302KYJ710 | O-RING, 9.8X2.4 | 2 |
33 | 91307035000 | O-RING, 18X3 | 1 |
34 | 91322PT0004 | O-RING, 17.8X1.9(ARAI) | 1 |
35 | 9430112160 | PIN A, DOWEL, 12X16 | 1 |
36 | 9430208140 | PIN B, DOWEL, 8X14 | 1 |
