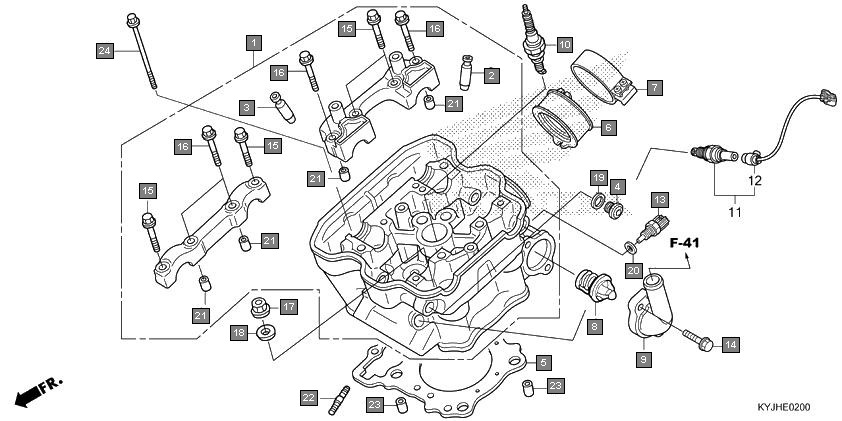

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 12010KYJUB0 | HEAD ASSY., CYLINDER | 1 |
| 2 | 12204KYJ305 | GUIDE, IN. VALVE(O.S.) | 2 |
| 3 | 12205KYJ305 | GUIDE, EX. VALVE(O.S.) | 2 |
| 4 | 12207KYJ900 | BOLT, SEALING, 12MM | 2 |
| 5 | 12251KYJ901 | GASKET, CYLINDER HEAD | 1 |
| 6 | 16211KYJ710 | INSULATOR, THROTTLE BODY | 1 |
| 7 | 16217KYJ900 | BAND, INSULATOR | 1 |
| 8 | 19300KGF911 | THERMOSTAT | 1 |
| 9 | 19321KYJ900 | COVER, THERMOSTAT | 1 |
| 10 | 31916MEH003 | PLUG, SPARK(SIMR8A9)(NGK) | 1 |
| 11 | 37870KRJ901 | SENSOR ASSY., WATER TEMP | 1 |
| 12 | 90011KYJ900 | BOLT, FLANGE, 6X22(NSHF) | 2 |
| 13 | 90017KYJ900 | BOLT, FLANGE, 6X32 | 4 |
| 14 | 90019KYJ900 | BOLT, FLANGE, 6X39.5 | 4 |
| 15 | 90204634000 | NUT, FLANGE, 10MM | 4 |
| 16 | 90410GCC000 | WASHER, 10MM | 4 |
| 17 | 90418KYJ900 | WASHER, 12.2X17X1.5 | 2 |
| 18 | 90454MC7000 | WASHER, SPECIAL, 12MM | 1 |
| 19 | 91105KSP910 | DOWEL PIN, 8X14 | 4 |
| 20 | 9430108140 | DOWEL PIN, 8X14 | 4 |
| 21 | 92900080223E | BOLT, STUD, 8X22 | 2 |
| 22 | 9430112160 | PIN A, DOWEL, 12X16 | 2 |
| 23 | 957010612000 | BOLT, FLANGE, 6X120 | 2 |
