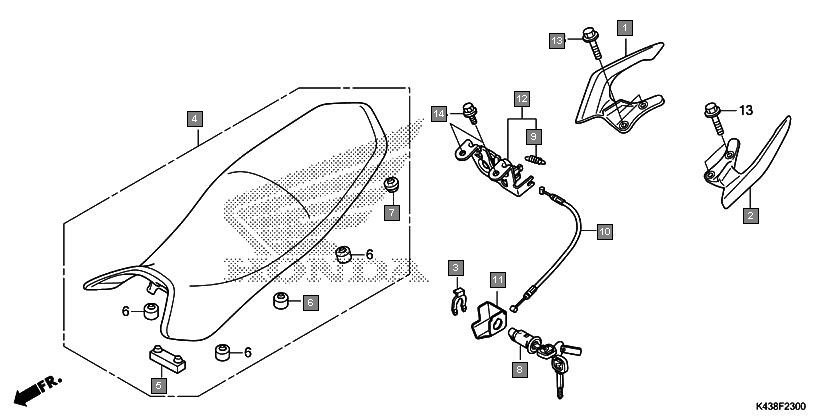

Motorcycles CB Hornet 160R CBF160MAJ Frame Seat/rear grip
Ref.No. Part No. Description Oty
1 50400K43900ZB GRIP, R. RR. *NH303M*. MAT AXIS GRAY METALLIC 1
2 50450K43900ZB GRIP, L. RR. *NH303M*. MAT AXIS GRAY METALLIC 1
3 75581GN8920 SPRING, LOCK KEY SETTING 1
4 77200K43901 SEAT COMP., DOUBLE 1
5 77205286000 RUBBER B, SEAT SETTING 1
6 77206KTE910 RUBBER, SEAT SETTING 6
7 77206KWS900 RUBBER, SEAT SETTING 2
8 77225K43901 LOCK ASSY., SEAT 1
9 77234GN2000 SPRING, SEAT LOCK 1
10 77240K43900 CABLE, SEAT LOCK 1
11 77241K43900 STAY, SEAT LOCK CABLE 1
12 77250K43900 LOCK COMP., SEAT 1
13 957010802500 BOLT, FLANGE, 8X25 4
14 960010601200 BOLT, FLANGE, 6X12 2
