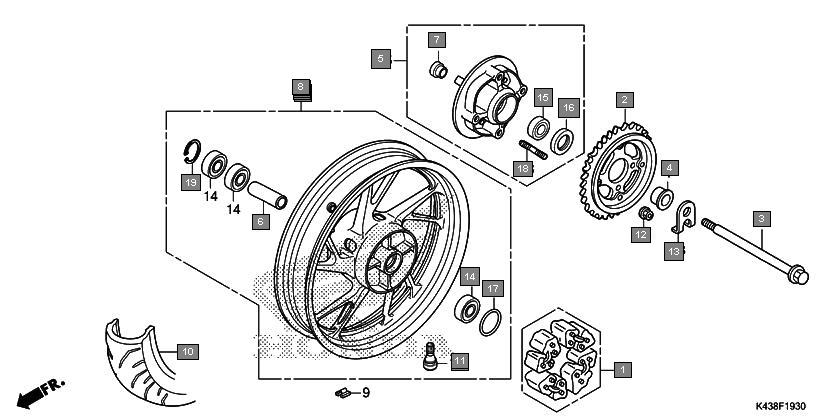

Motorcycles CB Hornet 160R CBF160MAJ Frame Rear wheel(drum brake)
Ref.No. Part No. Description Oty
1 06410KSP900 DAMPER SET, WHEEL 1
2 41200K43D00 SPROCKET COMP., FINAL DRIVEN (47T) 1
3 42301K43900 AXLE, RR. WHEEL 1
4 42313KYJ900 COLLAR, L. RR. WHEEL SIDE 1
5 42615K43D00ZA FLANGE SUB ASSY., RR. DRIVEN *NH303M* MAT AXIS GRAY METALLIC 1
6 42620K43900 COLLAR, RR. WHEEL DISTANCE 1
7 42625MC4000 COLLAR B, RR. AXLE DISTANCE 1
8 42650K43D60ZD WHEEL SUB ASSY., RR. *NH303M 1* MAT AXIS GRAY METALLIC 1
9 42650K43D60ZA WHEEL SUB ASSY., RR. *NH303M 4* MAT AXIS GRAY METALLIC 1
10 42650K43D40ZC WHEEL SUB ASSY., RR.(WL) *NH303M 1*. MAT AXIS GRAY METALLIC 1
11 42650K43D60ZB WHEEL SUB ASSY., RR. *NH303M 3* MAT AXIS GRAY METALLIC 1
12 42650K43D60ZC WHEEL SUB ASSY., RR. *NH303M 2* MAT AXIS GRAY METALLIC 1
13 42650K43D40ZA WHEEL SUB ASSY., RR.(WL) *NH303M 3*. MAT AXIS GRAY METALLIC 1
14 42650K43D60ZE WHEEL SUB ASSY., RR. *NH303M* MAT AXIS GRAY METALLIC 1
15 42650K43D40ZB WHEEL SUB ASSY., RR.(WL) *NH303M 2*. MAT AXIS GRAY METALLIC 1
16 42650K43D40ZD WHEEL SUB ASSY., RR.(WL) *NH303M*. MAT AXIS GRAY METALLIC 1
17 42711K43901 TIRE, RR.(MRF) (140/70-17 M/C 66S) 1
18 42753K24G11 VALVE, RIM(ACCURA) 1
19 42753KWF901 VALVE, RIM(TRITON) 1
20 90304KTE911 NUT, FLANGE SPECIAL, 10MM (SIMMODS MARSHALL) 4
21 90559KYJ900 WASHER, RR. SWINGARM 1
22 91081KYJ711 BEARING, RADIAL BALL, 6203UU (NEI) 3
23 91082KYJ711 BEARING, RADIAL BALL, 6204UU (NEI) 1
24 91253443761 DUST SEAL, 30X47X8(ARAI) 1
25 91352KSP900 O-RING, 51X2 1
26 90128K45N00 BOLT, STUD, 10X22 4
27 9452040000 CIRCLIP, INTERNAL, 40MM 1
