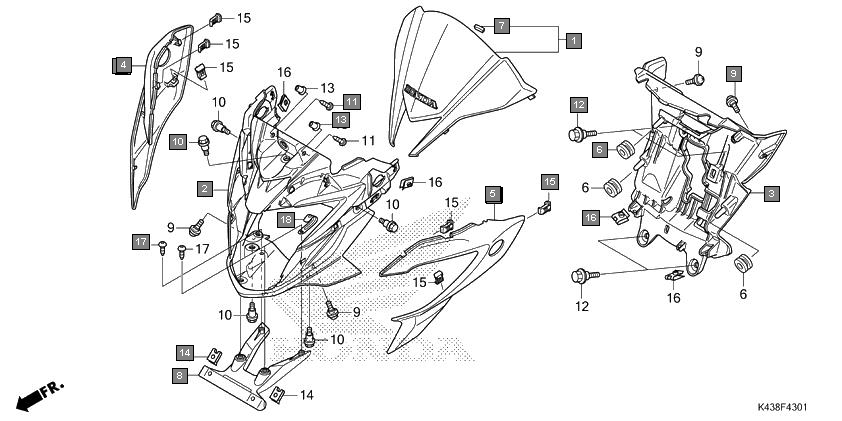

Motorcycles CB Hornet 160R CBF160MJ Frame Upper cowl(2)
Ref.No. Part No. Description Oty
1 61300K43D00ZA VISOR SET, FR.(WL) *TYPE1* 1
2 61302K43D00 COWL, FR. 1
3 61303K43D00 COVER, HEADLIGHT RR. 1
4 61305K43D00ZC GARNISH, R. FR. *PB396M* ATHLETIC BLUE METALLIC 1
5 61305K43D00ZD GARNISH, R. FR. *NH303M* MAT AXIS GRAY METALLIC 1
6 61305K43D00ZA GARNISH, R. FR. *Y230M* DAZZLE YELLOW METALLIC 1
7 61305K43D00ZB GARNISH, R. FR. *R321* SPORTS RED 1
8 61306K43D00ZC GARNISH, L. FR. *PB396M* ATHLETIC BLUE METALLIC 1
9 61306K43D00ZD GARNISH, L. FR. *NH303M* MAT AXIS GRAY METALLIC 1
10 61306K43D00ZB GARNISH, L. FR. *R321* SPORTS RED 1
11 61306K43D00ZA GARNISH, L. FR. *Y230M* DAZZLE YELLOW METALLIC 1
12 61307K43900 GROMMET, HEADLIGHT COVER 3
13 64141K43D00 RUBBER, FR. VISOR 1
14 64315K43900 STAY, FR. NUMBER PLATE 1
15 90101GE0000 SCREW, HINGE PATCH 4
16 90101K43D00 BOLT, SPECIAL, 6MM 5
17 90109MT3000 SCREW, TRUSS, 5X20 2
18 90111187000 BOLT, FLANGE, 6MM 4
19 90111MM9000 NUT, COWL SETTING, 5MM 2
20 90320KTE600 NUT, SPRING, 5MM 2
21 90651K14A31 CLIP, SLIDE 6
22 90677KANT00 NUT, CLIP, 5MM 4
23 9390325220 SCREW, TAPPING, 5X12 4
24 9459145000 CLIP, WIRE, 4X50 1
