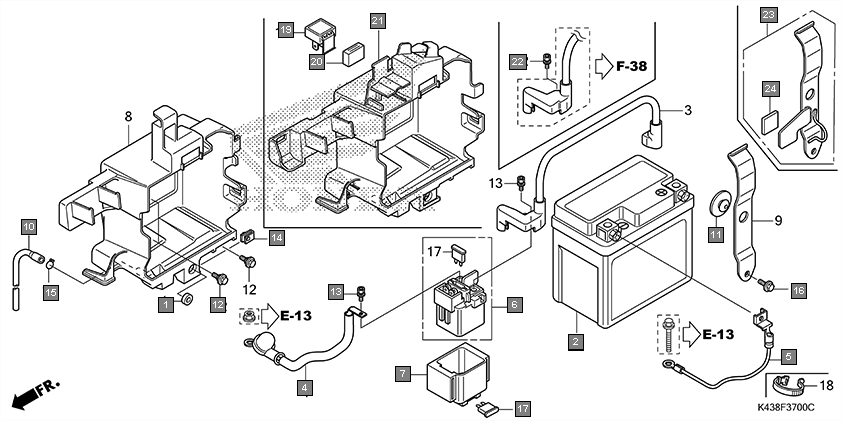

Motorcycles CB Hornet 160R CBF160MJ Frame Battery
Ref.No. Part No. Description Oty
1 17223KVX600 COLLAR, AIR CLEANER 1
2 31500KRPN41 BATTERY(ETZ5)(EXIDE) 1
3 31500KRP801 BATTERY(ETZ5-BS)(EXIDE) 1
4 32401K43900 CABLE, STARTER MAGNETIC BATTERY 1
5 32410K43900 CABLE, STARTER MOTOR 1
6 32601K38900 CABLE, BATTERY EARTH 1
7 35850K38901 SWITCH ASSY., STARTER MAGNETIC 1
8 35856K43900 RUBBER, SHOCK 1
9 50384K43900 BOX, BATTERY 1
10 50386K43900 BAND, BATTERY 1
11 50388K38900 TUBE, BATTERY BOX 1
12 83618323000 RUBBER, BATTERY BOX 1
13 90111162000 BOLT, FLANGE, 6MM 3
14 90111MR5000 BOLT, SOCKET, 5X9 2
15 90311MT3000 NUT, CLIP, 6MM 1
16 90651MK3780 CLIP, TUBE(B12.5) 1
17 957010601600 BOLT, FLANGE, 6X16 1
18 9820032000 FUSE, BLADE(20A) 2
19 32161KSP920 BAND B1, WIRE 1
20 38301K43D01 RELAY COMP., WINKER 1
21 38306K38901 SUSPENSION, WINKER RELAY (STAR ENGINEERS) 1
22 50384K43D00 BOX, BATTERY 1
