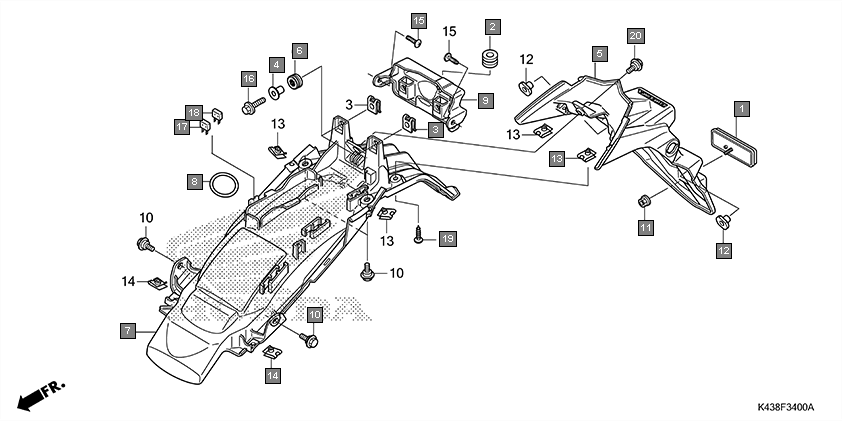

Motorcycles CB Hornet 160R CBF160MJ Frame Rear fender
Ref.No. Part No. Description Oty
1 33741KPL902 REFLECTOR, REFLEX 1
2 61103357000 RUBBER, FR. FENDER MOUNTING 1
3 80102KZJ900 NUT, CLIP, 6MM 2
4 80105KZJ900 COLLAR, RR. FENDER INNER 2
5 80110K43900ZA FENDER SET A, RR.(WL) *TYPE1* 1
6 80112KVN900 RUBBER, RR. FENDER 2
7 80121K43900 FENDER B, RR. 1
8 80124K26900 BAND, TOOL 1
9 80131K43900 STAY, INNER FENDER 1
10 90111162000 BOLT, FLANGE, 6MM 4
11 90301KWN901 NUT, U, 5MM 1
12 90311KTE910 NUT, RR. FENDER 2
13 90320KTE600 NUT, SPRING, 5MM 4
14 90677KANT00 NUT, CLIP, 5MM 2
15 9390335320 SCREW, TAPPING, 5X16 2
16 957010602200 BOLT, FLANGE, 6X22 2
17 9820040500 FUSE, MINI(5A) 1
18 9820041500 FUSE, MINI(15A) 1
19 9390335380 SCREW, TAPPING, 5X16 2
20 90111147000 BOLT, FLANGE, 6MM 1
