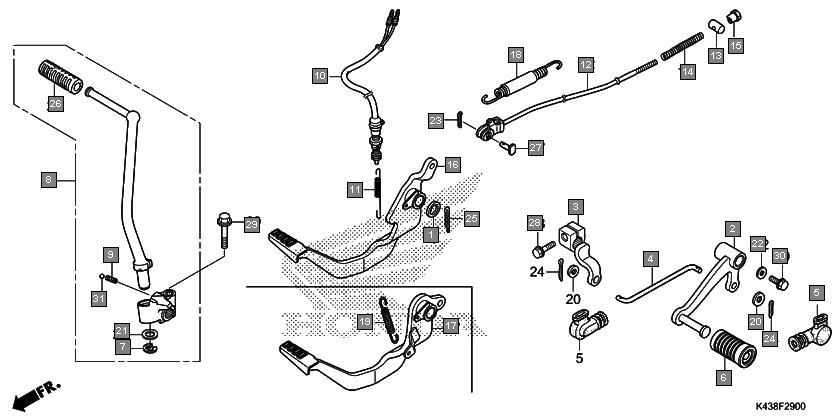

Motorcycles CB Hornet 160R CBF160MJ Frame Pedal
Ref.No. Part No. Description Oty
1 16502880000 WASHER, SWITCH BOSS 1
2 24701K43900 PEDAL, GEAR CHANGE 1
3 24711K43900 ARM, GEAR CHANGE 1
4 24720K43900 ROD, TIE 1
5 24721GS3000 COVER, CHANGE PEDAL 2
6 24781KSP860 RUBBER, CHANGE PEDAL 1
7 28293333000 CLIP, KICK STARTER ARM 1
8 28300K43900 ARM ASSY., KICK STARTER 1
9 28333KK0000 SPRING, KICK STARTER 1
10 35350K38901 SWITCH ASSY., RR. STOP 1
11 35357KBA900 SPRING, STOP SWITCH 1
12 43451K43900 ROD COMP., RR. BRAKE 1
13 43455KSP900 JOINT, BRAKE ARM 1
14 43456KSP900 SPRING, BRAKE ROD 1
15 43459KSP900 NUT, BRAKE ROD ADJUSTING 1
16 46500K43900 PEDAL COMP., BRAKE 1
17 46500K43910 PEDAL COMP., BRAKE 1
18 46510K21900 SPRING SET, BRAKE PEDAL 1
19 46514KN5670 SPRING, BRAKE PEDAL 1
20 90502K43900 WASHER, PLAIN, 7MM 2
21 90505KRM860 WASHER, 15.5X22 1
22 9410306000 WASHER, PLAIN, 6MM 1
23 9420120120 PIN, SPLIT, 2.0X12 1
24 9420120150 PIN, SPLIT, 2.0X15 2
25 9420125220 PIN, SPLIT, 2.5X22 1
26 9501151000 RUBBER A, KICK STARTER 1
27 9501553000 PIN C, JOINT 1
28 957010602007 BOLT, FLANGE, 6X20 1
29 957010804007 BOLT, FLANGE, 8X40 1
30 960010601200 BOLT, FLANGE, 6X12 1
31 9621108000 BALL, STEEL, #8(1/4) 1
