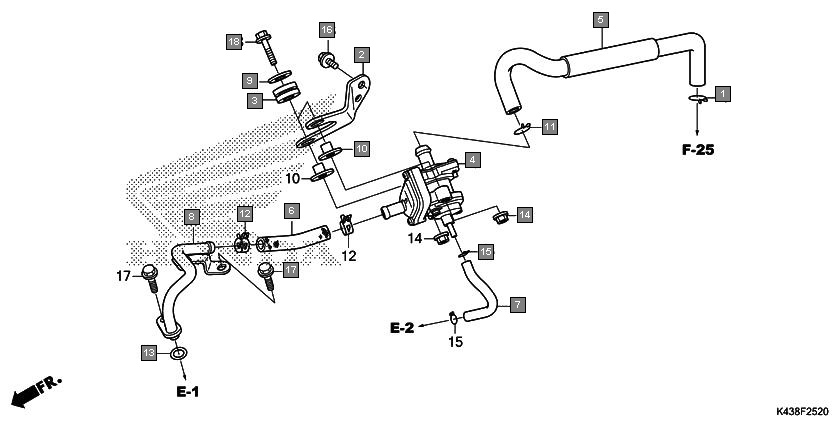

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 15772GW3980 | CLIP, BREATHER TUBE | 1 |
2 | 17365K38900 | PLATE, AIR SUCTION VALVE SETTING | 1 |
3 | 17622GB7900 | RUBBER, CUSHION | 2 |
4 | 18600K38901 | VALVE ASSY., AIR SUCTION | 1 |
5 | 18601K38900 | TUBE, SUCTION | 1 |
6 | 18602K38900 | TUBE, REED VALVE | 1 |
7 | 18603K38900 | TUBE, PB | 1 |
8 | 18640K38900 | PIPE COMP., AIR FEED | 1 |
9 | 90417KSP900 | WASHER, AIR SUCTION VALVE | 2 |
10 | 90502KEZ900 | COLLAR, CUSHION RUBBER | 2 |
11 | 90646657000 | CLIP, AIR HOSE, 16MM | 1 |
12 | 90678K14600 | CLIP, HOSE | 2 |
13 | 91309MJ0003 | O-RING, 9.8X2.8(ARAI) | 1 |
14 | 9405006000 | NUT, FLANGE, 6MM | 2 |
15 | 90651KWPF00 | CLIP, TUBE(B7) | 2 |
16 | 957010601207 | BOLT, FLANGE, 6X12 | 1 |
17 | 957010601600 | BOLT, FLANGE, 6X16 | 2 |
18 | 957010603000 | BOLT, FLANGE, 6X30 | 2 |
