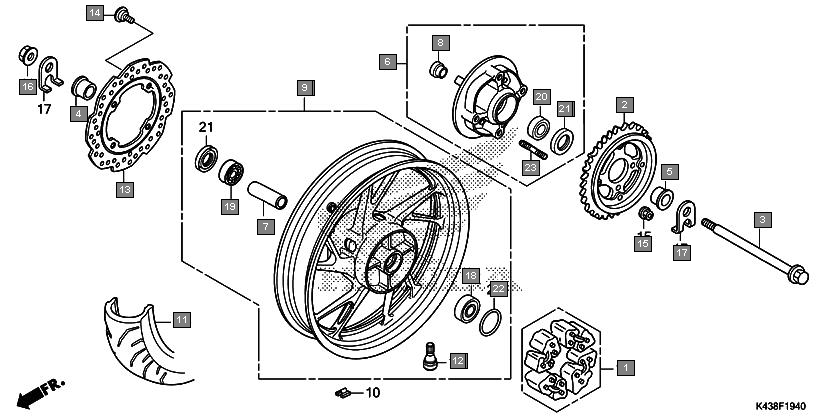

Motorcycles CB Hornet 160R CBF160MJ Frame Rear wheel(disk brake)
Ref.No. Part No. Description Oty
1 06410KSP900 DAMPER SET, WHEEL 1
2 41200K43900 SPROCKET COMP., FINAL DRIVEN (47T) 1
3 41200K43D00 SPROCKET COMP., FINAL DRIVEN (47T) 1
4 42301K43900 AXLE, RR. WHEEL 1
5 42312KYJ900 COLLAR, R. RR. WHEEL SIDE 1
6 42313KYJ900 COLLAR, L. RR. WHEEL SIDE 1
7 42615K43D00ZA FLANGE SUB ASSY., RR. DRIVEN *NH303M* MAT AXIS GRAY METALLIC 1
8 42615K43900ZA FLANGE SUB ASSY., RR. DRIVEN *NH303M* MAT AXIS GRAY METALLIC + Yellow 1
9 42620KYJ900 COLLAR, RR. WHEEL DISTANCE 1
10 42625MC4000 COLLAR B, RR. AXLE DISTANCE 1
11 42650K43D50ZB WHEEL SUB ASSY., RR.(WL) *NH303M 2*. MAT AXIS GRAY METALLIC 1
12 42650K43D70ZC WHEEL SUB ASSY., RR. *NH303M 2* MAT AXIS GRAY METALLIC 1
13 42650K43D50ZA WHEEL SUB ASSY., RR.(WL) *NH303M 3*. MAT AXIS GRAY METALLIC 1
14 42650K43D50ZD WHEEL SUB ASSY., RR.(WL) *NH303M*. MAT AXIS GRAY METALLIC 1
15 42650K43D70ZA WHEEL SUB ASSY., RR. *NH303M 4* MAT AXIS GRAY METALLIC 1
16 42650K43D70ZE WHEEL SUB ASSY., RR. *NH303M * MAT AXIS GRAY METALLIC 1
17 42650K43D50ZE WHEEL SUB ASSY., RR.(WL) *TYPE4* 1
18 42650K43D50ZF WHEEL SUB ASSY., RR.(WL) *TYPE3* 1
19 42650K43D50ZG WHEEL SUB ASSY., RR.(WL) *TYPE1* 1
20 42650K43D50ZC WHEEL SUB ASSY., RR.(WL) *NH303M 1*. MAT AXIS GRAY METALLIC 1
21 42650K43D70ZB WHEEL SUB ASSY., RR. *NH303M 3* MAT AXIS GRAY METALLIC 1
22 42650K43D70ZD WHEEL SUB ASSY., RR. *NH303M 1* MAT AXIS GRAY METALLIC 1
23 42711K43901 TIRE, RR.(MRF) (140/70-17 M/C 66S) 1
24 42753K24G11 VALVE, RIM(ACCURA) 1
25 42753KWF901 VALVE, RIM(TRITON) 1
26 43251K43911 DISK, RR. BRAKE(YUTAKA) 1
27 90105KSP870 BOLT, DISK, 8X24 4
28 90304KTE911 NUT, FLANGE SPECIAL, 10MM (SIMMODS MARSHALL) 4
29 90306KCJ951 NUT, U, 16MM 1
30 90559KYJ900 WASHER, RR. SWINGARM 2
31 91051K43901 BEARING, RADIAL BALL, 6203U (NBC) 1
32 91052K43901 BEARING, RADIAL BALL, 6303U (NBC) 1
33 91082KYJ711 BEARING, RADIAL BALL, 6204UU (NEI) 1
34 91253443761 DUST SEAL, 30X47X8(ARAI) 2
35 91253443762 DUST SEAL, 30X47X8(NOK) 2
36 91352KSP900 O-RING, 51X2 1
37 92915100250E BOLT, STUD, 10X25 4
38 90128K45N00 BOLT, STUD, 10X22 4
