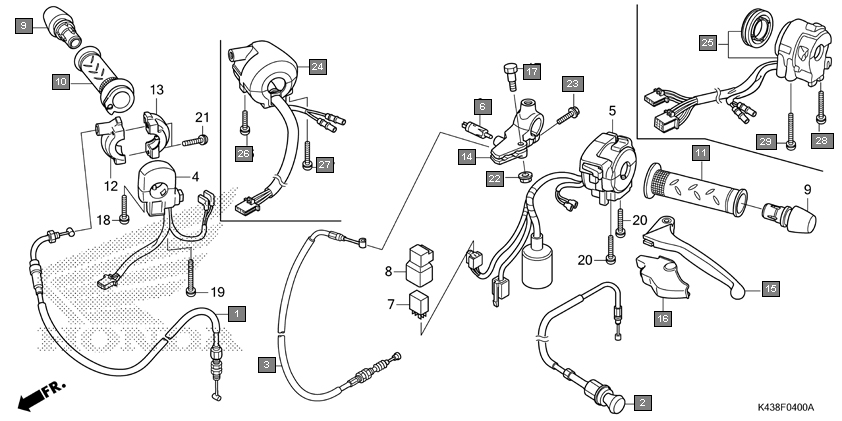

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 17910K43901 | CABLE COMP., THROTTLE | 1 |
| 2 | 17950K43901 | CABLE COMP., CHOKE | 1 |
| 3 | 22870K43901 | CABLE COMP., CLUTCH | 1 |
| 4 | 35150K38901 | SWITCH ASSY., STARTER | 1 |
| 5 | 35200K43L01 | SWITCH ASSY., WINKER | 1 |
| 6 | 35330KWS901 | SWITCH ASSY., CLUTCH | 1 |
| 7 | 38502KSP910 | RELAY COMP., POWER (MICRO ISO 5P) | 1 |
| 8 | 38506KSP910 | SUSPENSION, POWER RELAY | 1 |
| 9 | 53105KRC900 | END, STEERING HANDLE | 2 |
| 10 | 53140KSPA70 | GRIP COMP., THROTTLE | 1 |
| 11 | 53166KSPA70 | GRIP, L. HANDLE | 1 |
| 12 | 53167KWF900 | HOUSING, UPPER THROTTLE | 1 |
| 13 | 53168KTE910 | HOUSING, UNDER THROTTLE | 1 |
| 14 | 53172KTE930 | BRACKET, L. HANDLE LEVER | 1 |
| 15 | 53178K21900 | LEVER COMP., L. HANDLE | 1 |
| 16 | 53179KWF950 | COVER, L. HANDLE LEVER | 1 |
| 17 | 90114310000 | BOLT, HANDLE LEVER PIVOT | 1 |
| 18 | 93500040320G | SCREW, PAN, 4X32 | 1 |
| 19 | 93500040450G | SCREW, PAN, 4X45 | 1 |
| 20 | 93500050200G | SCREW, PAN, 5X20 | 2 |
| 21 | 93500050220G | SCREW, PAN, 5X22 | 2 |
| 22 | 9405006000 | NUT, FLANGE, 6MM | 1 |
| 23 | 960010602507 | BOLT, FLANGE, 6X25 | 1 |
| 24 | 960010602500 | BOLT, FLANGE, 6X25 | 1 |
| 25 | 35150K43D01 | SWITCH ASSY., STARTER | 1 |
| 26 | 35200K43D01 | SWITCH ASSY., WINKER | 1 |
| 27 | 938920502007 | SCREW-WASHER, 5X20 | 1 |
| 28 | 938920502507 | SCREW-WASHER, 5X25 | 1 |
| 29 | 938920503507 | SCREW-WASHER, 5X35 | 1 |
| 30 | 938920504507 | SCREW-WASHER, 5X45 | 1 |
