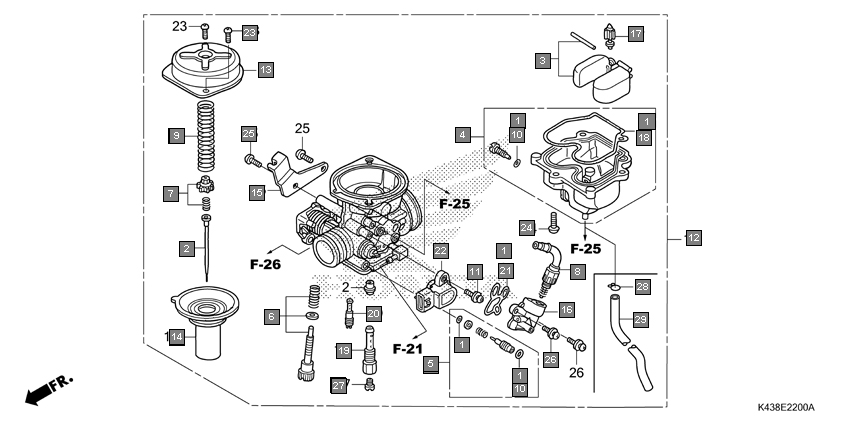

Motorcycles CB Hornet 160R CBF160MJ Engine Carburetor
Ref.No. Part No. Description Oty
1 16010KSP911 GASKET SET 1
2 16012K43L01 NEEDLE SET, JET 1
3 16013KRC921 FLOAT SET 1
4 16015KSP911 CHAMBER SET, FLOAT 1
5 16016KSP911 SCREW SET A 1
6 16016KZJ901 SCREW SET A 1
7 16028KPP901 SCREW SET B 1
8 16037KPP861 PLATE SET, VALVE 1
9 16046KVC901 VALVE SET, STARTER 1
10 16050K38901 SPRING, COMPRESSION COIL 1
11 16050K43D01 SPRING, COMPRESSION COIL 1
12 16075KRP981 O-RING 2
13 16080KTN901 SCREW-WASHER, TORX(5X16) 1
14 16100K43L02 CARBURETOR ASSY.(AVK6BD A) 1
15 16100K43D01 CARBURETOR ASSY.(6BJ A) 1
16 16107KGH901 TOP 1
17 16111K38901 PISTON COMP., VACUUM 1
18 16111K43D41 PISTON COMP., VACUUM 1
19 16119K38901 STAY, WIRE 1
20 16140K38901 BODY COMP., BYSTARTER 1
21 16155KFR701 VALVE COMP., FLOAT 1
22 16163KRP981 GASKET, FLOAT CHAMBER 1
23 16165K43D41 HOLDER, NEEDLE JET 1
24 16165K21901 HOLDER, NEEDLE JET 1
25 16180K38901 JET, SLOW, #38 1
26 16423KGH901 GASKET, BYSTARTER 1
27 37890KTN901 SENSOR ASSY., THROTTLE 1
28 93500040081H SCREW, PAN, 4X8 2
29 93500040120H SCREW, PAN, 4X12 3
30 93500050121H SCREW, PAN, 5X12 2
31 938920501218 SCREW-WASHER, 5X12 2
32 99101MFE1200 JET, MAIN, #120 1
33 99101MAZ1150 JET, MAIN, #115 1
34 9500202089 CLIP, TUBE(B8) 1
35 950054555550 TUBE, 4.5X555(95005-45001-50M) 1
