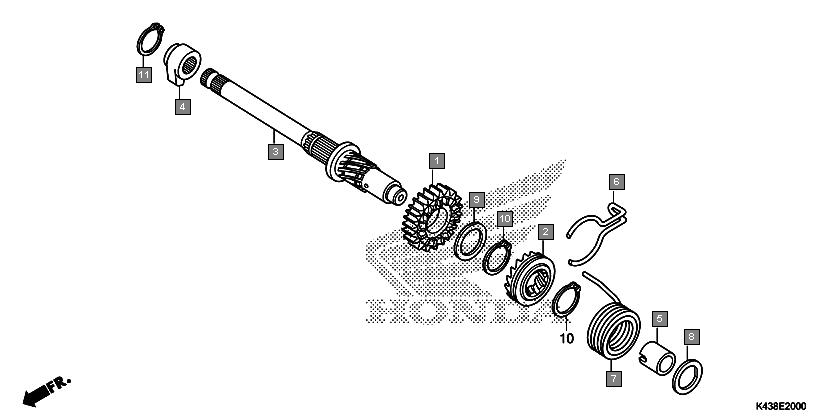

Motorcycles CB Hornet 160R CBF160MJ Engine Kick starter spindle
Ref.No. Part No. Description Oty
1 28211K38900 PINION, KICK STARTER(21T) 1
2 28221KWS900 RATCHET, STARTER DRIVE 1
3 28221K38940 RATCHET, STARTER DRIVE 1
4 28251K38900 SPINDLE, KICK STARTER 1
5 28262KWS900 RETAINER, KICK SPINDLE 1
6 28265KWB600 COLLAR, KICK SPRING 1
7 28271KWB600 SPRING, FRICTION STARTER GEAR 1
8 28281KWB600 SPRING, KICK RETURN 1
9 90451KGH900 WASHER, SPECIAL, 14MM 1
10 90454KPH900 WASHER, 25X20.2X1 1
11 90605200000 SET RING, 20MM 2
12 90601K14960 CIRCLIP, EXTERNAL, 18MM 1
