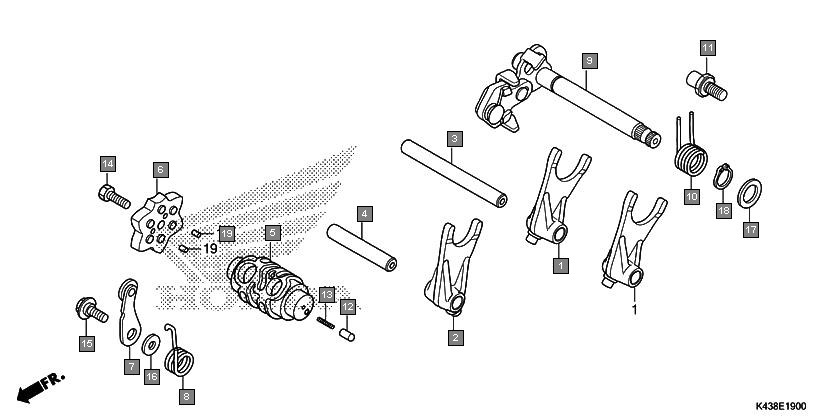

Motorcycles CB Hornet 160R CBF160MJ Engine Gearshift drum
Ref.No. Part No. Description Oty
1 24211KRM840 FORK, GEARSHIFT 2
2 24211KTED00 FORK, GEARSHIFT 2
3 24212K38900 FORK, CENTER GEARSHIFT 1
4 24212K43D00 FORK, CENTER GEARSHIFT 1
5 24241KRM840 SHAFT A, GEARSHIFT FORK 1
6 24242KRM840 SHAFT B, GEARSHIFT FORK 1
7 24301KREG00 DRUM, GEARSHIFT 1
8 24410KSP860 PLATE COMP., GEARSHIFT DRUM STOPPER 1
9 24430KRMB10 STOPPER COMP., GEARSHIFT DRUM 1
10 24436KTT900 SPRING, DRUM STOPPER 1
11 24610KREG00 SPINDLE COMP., GEARSHIFT 1
12 24651KSP910 SPRING, GEARSHIFT RETURN 1
13 24652KRM840 PIN, SHIFT RETURN SPRING 1
14 35751KPH900 CAP, CHANGE SWITCH CONTACT 1
15 35752KRM840 SPRING, CHANGE SWITCH CONTACT 1
16 90003KVS900 BOLT, HEX., 6X20 1
17 90022KRM840 PIVOT, SHIFT DRUM STOPPER ARM 1
18 90417KRM840 WASHER, DRUM STOPPER 1
19 90457KRM840 WASHER, 14MM 1
20 9451014000 CIRCLIP, EXTERNAL, 14MM 1
21 9622030085 ROLLER, 3X8.5 2
