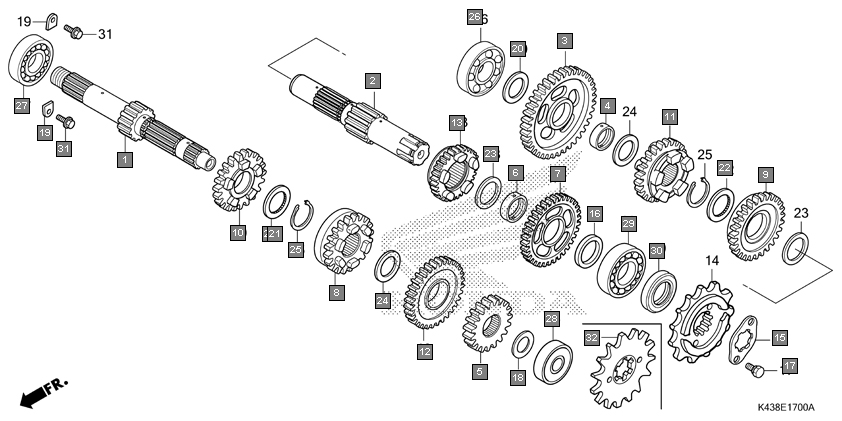

Motorcycles CB Hornet 160R CBF160MJ Engine Transmission
Ref.No. Part No. Description Oty
1 23210K38900 MAINSHAFT COMP.(13T) 1
2 23221K43900 COUNTERSHAFT(19T) 1
3 23421K43900 GEAR, COUNTERSHAFT FIRST(40T) 1
4 23427KRM840 BUSH, 17X20.5X8.0 1
5 23431K43900 GEAR, MAINSHAFT SECOND(19T) 1
6 23432KRM840 BUSH, 20MM 1
7 23441K43900 GEAR, COUNTERSHAFT SECOND(34T) 1
8 23451K43900 GEAR, MAINSHAFT THIRD(20T) 1
9 23461K43900 GEAR, COUNTERSHAFT THIRD(26T) 1
10 23471K43900 GEAR, MAINSHAFT FOURTH(30T) 1
11 23481K43900 GEAR, COUNTERSHAFT FOURTH(32T) 1
12 23491K43900 GEAR, MAINSHAFT FIFTH(24T) 1
13 23501K43900 GEAR, COUNTERSHAFT FIFTH(22T) 1
14 23800K21900 SPROCKET COMP., DRIVE(15T) 1
15 23811KR3600 PLATE A2, FIXING 1
16 23911KREG00 COLLAR, 20MM 1
17 90084041000 BOLT, DRIVE SPROCKET FIXING 2
18 90412KPH900 WASHER, SPECIAL, 12X23 1
19 90441KRM840 PLATE, BEARING HOLDER 2
20 90451KREG00 WASHER, SPECIAL(17MM) 1
21 90453KVS900 WASHER, SPLINE, 20MM 1
22 90453KVX600 WASHER, SPLINE, 20MM 1
23 90454KPS900 WASHER B, THRUST, 20MM 2
24 90458KVS900 WASHER, THRUST, 17MM 2
25 90605KVS900 SET RING, 20MM 2
26 91003K38901 BEARING, RADIAL BALL, 17X42X12 1
27 91004KTN900 BEARING, RADIAL BALL, 17X40X12 1
28 91005K38901 BEARING, RADIAL BALL, 12X32X10 1
29 91006K38901 BEARING, RADIAL BALL, 20X52X15 1
30 91216KSP911 OIL SEAL, 20X34X7(ARAI) 1
31 957010601600 BOLT, FLANGE, 6X16 2
32 23801KBP900 SPROCKET, DRIVE(15T) 1
