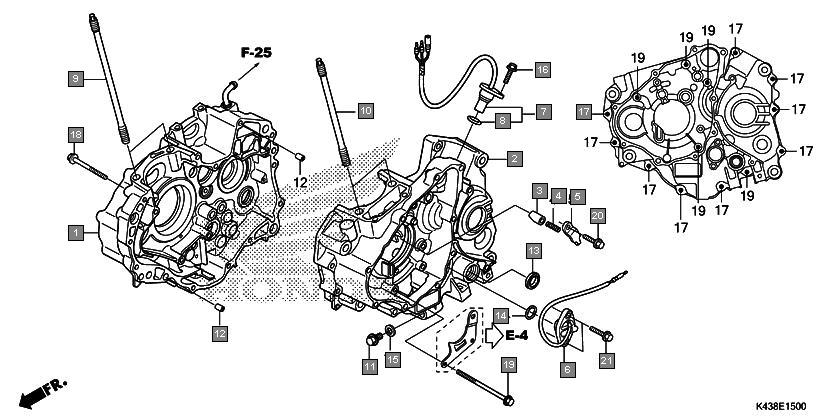

Motorcycles CB Hornet 160R CBF160MJ Engine Crankcase
Ref.No. Part No. Description Oty
1 11100K38900 CRANKCASE COMP., R. 1
2 11200K38900 CRANKCASE COMP., L. 1
3 11215KRM840 PLUG, BEARING PUSH 1
4 11216KRM840 SPRING, BEARING PUSH 1
5 11217KRM840 PLATE, BEARING PUSH 1
6 35759K38901 CONTACT ASSY., NEUTRAL SWITCH 1
7 37700K43901 SENSOR ASSY., SPEED 1
8 37701K38901 O-RING, 17.7X2.4 1
9 90031KREG00 BOLT, CYLINDER STUD(A) (204.5MM) 2
10 90032KREG00 BOLT, CYLINDER STUD(B) (168.5MM) 2
11 90131KRM840 BOLT, DRAIN PLUG, 12MM 1
12 90702KRM840 DOWEL PIN, 8X14 2
13 91203KSP911 OIL SEAL, 14X22X5(ARAI) 1
14 91305KPH900 O-RING, 19.4X2.3 1
15 9410912000 WASHER, DRAIN PLUG, 12MM 1
16 957010601600 BOLT, FLANGE, 6X16 1
17 957010604000 BOLT, FLANGE, 6X40 9
18 957010604500 BOLT, FLANGE, 6X45 1
19 957010607000 BOLT, FLANGE, 6X70 6
20 960010601600 BOLT, FLANGE, 6X16 1
21 960010602000 BOLT, FLANGE, 6X20 2
