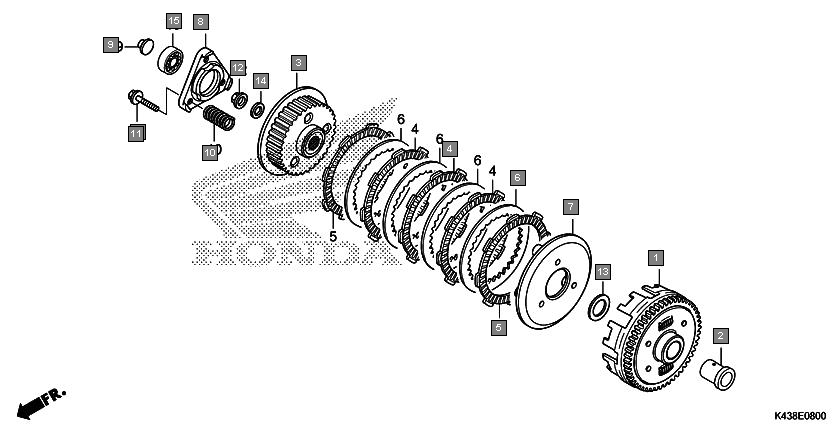

Motorcycles CB Hornet 160R CBF160MJ Engine Clutch
Ref.No. Part No. Description Oty
1 22100K38941 OUTER COMP., CLUTCH(69T) 1
2 22100K38900 OUTER COMP., CLUTCH(69T) 1
3 22115KREG00 GUIDE, CLUTCH OUTER 1
4 22120KVSJ01 CENTER, CLUTCH 1
5 22201KPM850 DISK, CLUTCH FRICTION(4X8X45) 3
6 22201KREG01 DISK, CLUTCH FRICTION(F.C.C.) 2
7 22321KPS900 PLATE, CLUTCH 4
8 22321KTED01 PLATE, CLUTCH 4
9 22355KVSJ01 PLATE, CLUTCH PRESSURE 1
10 22361KVSJ01 PLATE, CLUTCH LIFTER 1
11 22366KRM840 ROD, CLUTCH LIFTER 1
12 22401KVSJ01 SPRING, CLUTCH 3
13 90008KRM840 BOLT, FLANGE, 6X25 3
14 90202KRM840 NUT, SPECIAL FLANGE, 14MM 1
15 90401KRMB10 WASHER, PLAIN, 17MM 1
16 90401KVS740 WASHER, PLAIN, 17MM 1
17 90501KPTA00 WASHER, 14.1X29X2.8 1
18 961006003000 BEARING, RADIAL BALL, 6003 1
