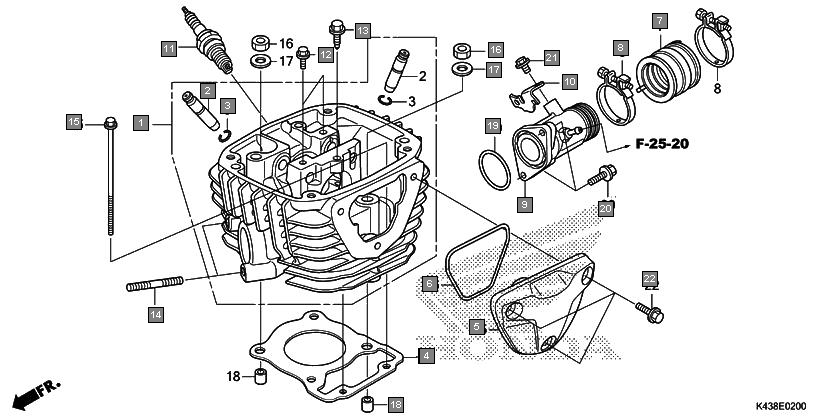

Motorcycles CB Hornet 160R CBF160MJ Engine Cylinder head
Ref.No. Part No. Description Oty
1 12200K38900 HEAD COMP., CYLINDER 1
2 12204KREP00 GUIDE, VALVE(O.S.) 2
3 12213KSP910 CLIP, VALVE GUIDE 2
4 12252K38900 GASKET, CYLINDER HEAD(O.S.) 1
5 12251K38901 GASKET, CYLINDER HEAD 1
6 12341K38900 COVER, CYLINDER HEAD L. SIDE 1
7 12395KREG00 O-RING, 72.8X2.0 1
8 16211K38900 INSULATOR, CARBURETOR 1
9 16217KSP910 BAND, INSULATOR 2
10 17110K43900 PIPE COMP., IN. 1
11 17110K38900 PIPE COMP., IN. 1
12 17120K43900 STAY, ONE WAY VALVE 1
13 31916KRM841 PLUG, SPARK(CPR8EA-9)(NGK) 1
14 90002KRM840 BOLT, FLANGE, 5X14 2
15 90014KREG00 BOLT, SPECIAL, 6X21 1
16 90035KRM840 BOLT, STUD, 8X22 2
17 90036KREG00 BOLT, FLANGE, 6X110 2
18 90201KREG00 NUT, LOCK, 9MM 4
19 90404KREG00 WASHER, 9.2X19X2.3 4
20 90701KREG00 DOWEL PIN, SPECIAL, 10X12 2
21 91304KRM840 O-RING, 33.5X3.0 1
22 957010602500 BOLT, FLANGE, 6X25 2
23 960010601000 BOLT, FLANGE, 6X10 1
24 960010602200 BOLT, FLANGE, 6X22 3
