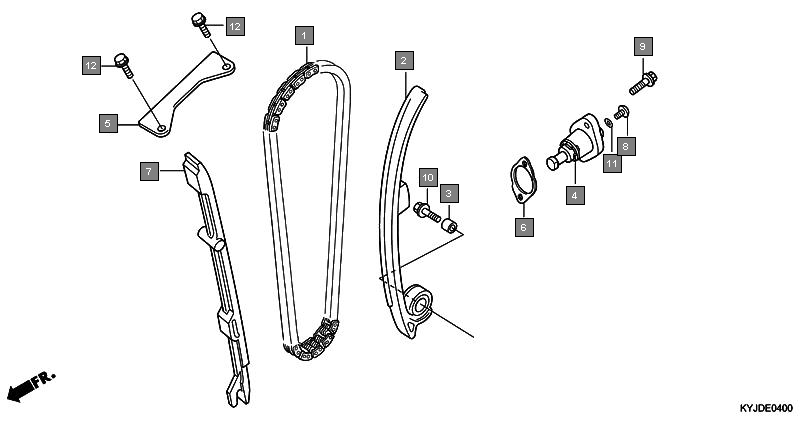

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 14401KYJ901 | CHAIN, CAM(128L)(DAIDO) | 1 |
2 | 14510KYJ900 | TENSIONER COMP., CAM CHAIN | 1 |
3 | 14517KYJ900 | COLLAR, TENSIONER | 1 |
4 | 14520KYJ711 | LIFTER ASSY., TENSIONER | 1 |
5 | 14546KYJ900 | GUIDE B, CAM CHAIN | 1 |
6 | 14560KGH900 | GASKET, TENSIONER LIFTER | 1 |
7 | 14611KYJ900 | GUIDE A, CAM CHAIN | 1 |
8 | 90005KYJ900 | SCREW, PAN, 6X6 | 1 |
9 | 90011KYJ900 | BOLT, FLANGE, 6X22(NSHF) | 2 |
10 | 90022KYJ900 | BOLT-WASHER, 6X25 | 1 |
11 | 91306MG3000 | O-RING, 1.5X9.5 | 1 |
12 | 957010601400 | BOLT, FLANGE, 6X14 | 2 |
13 | 957020601400 | BOLT, FLANGE, 6X14 | 2 |
