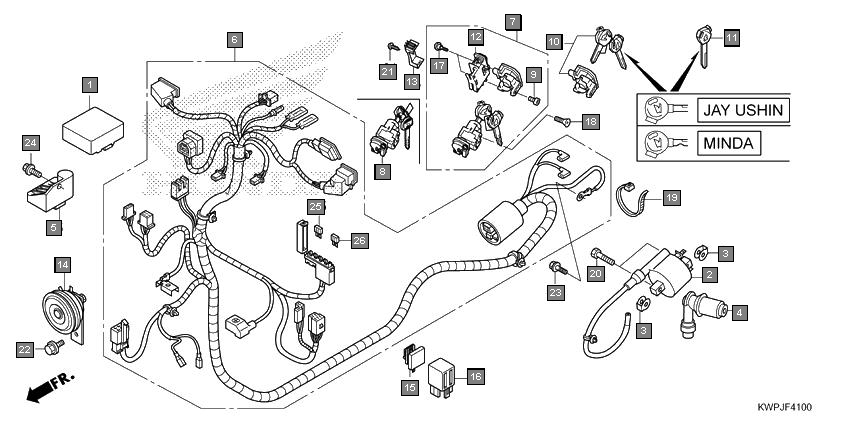

Scooters Activa SCV110J Frame Wire harness
Ref.No. Part No. Description Oty
1 30410KWPH11 SPARK UNIT COMP.(SHINDENGEN) 1
2 30410KWPH01 SPARK UNIT COMP.(DENSO) 1
3 30500KWPD01 COIL ASSY., IGNITION(WINGS) 1
4 30500KWPD21 COIL ASSY., IGNITION(JAGDISH) 1
5 30520GFM900 SPACER, IGNITION COIL 2
6 30700KWPH01 CAP ASSY., NOISE SUPPRESSOR 1
7 30700K24921 CAP ASSY., NOISE SUPPRESSOR 1
8 31600KWPH01 RECTIFIER COMP., REGULATE 1
9 32100KWPH20 HARNESS, WIRE 1
10 32100KWPH10 HARNESS, WIRE 1
11 32100KWPH00 HARNESS, WIRE 1
12 35010KWPH01 KEY SET(JAY USHIN) 1
13 35010KWPH10 KEY SET 1
14 35102K86D01 SWITCH ASSY., COMBINATION & LOCK 1
15 35102KWPH01 SWITCH ASSY., COMBINATION & LOCK(JAY USHIN) 1
16 35109K86D01 BOLT, SOCKET, 5X8(MINDA) 1
17 35109KWPH01 BOLT, SOCKET, 5X8(JAY USHIN) 1
18 35110K86D01 KEY, SHUTTER(MINDA) 1
19 35110KWPH01 KEY, SHUTTER(JAY USHIN) 1
20 35121KWPH00 KEY, BLANK (JAY USHIN) 1
21 35121K86D00 KEY, BLANK (D0KEYTOP2REPORDER) 1
22 35190KWPH01 SWITCH ASSY., SEAT OPENER (JAY USHIN) 1
23 35190KWPH11 SWITCH ASSY., SEAT OPENER 1
24 35191K86D01 COVER, CABLE 1
25 35191KWPH01 COVER, CABLE 1
26 38110KWPG01 HORN COMP.(NIKKO) 1
27 38110KWP901 HORN COMP. 1
28 38301KWPH01 RELAY COMP., WINKER 1
29 38501KWH971 RELAY COMP., STARTER(JAGDISH) 1
30 38501KPL901 RELAY COMP., STARTER(MULTILINK) 1
31 90101MT4000 SCREW, SCREEN SETTING 2
32 90164KPL900 SCREW, U-LOCK FLAT, 6X12 2
33 90657KRP901 CABLE, TIE(LONG) 1
34 92101060204J BOLT, HEX., 6X20 2
35 9390124320 SCREW, TAPPING, 4X12 1
36 957010601200 BOLT, FLANGE, 6X12 1
37 957010601208 BOLT, FLANGE, 6X12 1
38 957010601608 BOLT, FLANGE, 6X16 1
39 9820031000 FUSE, BLADE(10A) 2
40 9820031500 FUSE, BLADE(15A) 2
