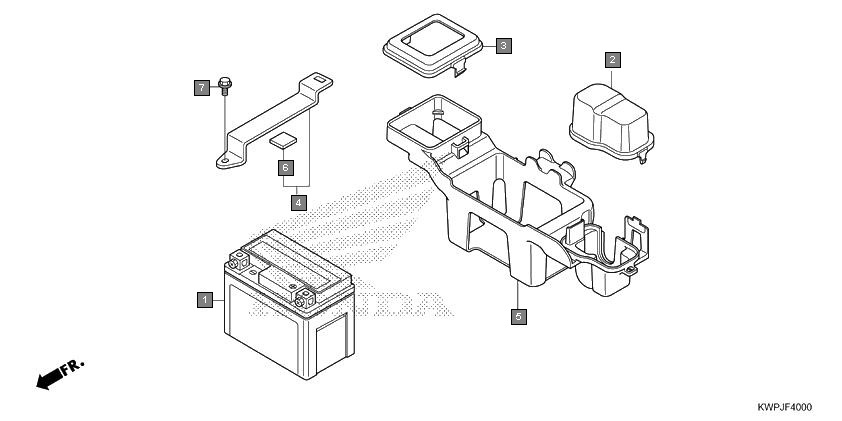

Scooters Activa SCV110J Frame Battery
Ref.No. Part No. Description Oty
1 31500KTE621 BATTERY(ATZ4L)(AMARA RAJA) 1
2 31500KWPG01 BATTERY(YTZ4(YUASA) 1
3 31500KVT941 BATTERY ASSY.(ETZ4)(EXIDE) 1
4 50325KWPD01 BOX, RELAY UPPER 1
5 50325KWPE00 COVER, C.D.I. UNIT 1
6 50341KWPH00 BAND COMP., BATTERY 1
7 50381KWPE00 CASE, BATTERY 1
8 50386KWPD00 RUBBER A, BATTERY 1
9 957010601208 BOLT, FLANGE, 6X12 1
