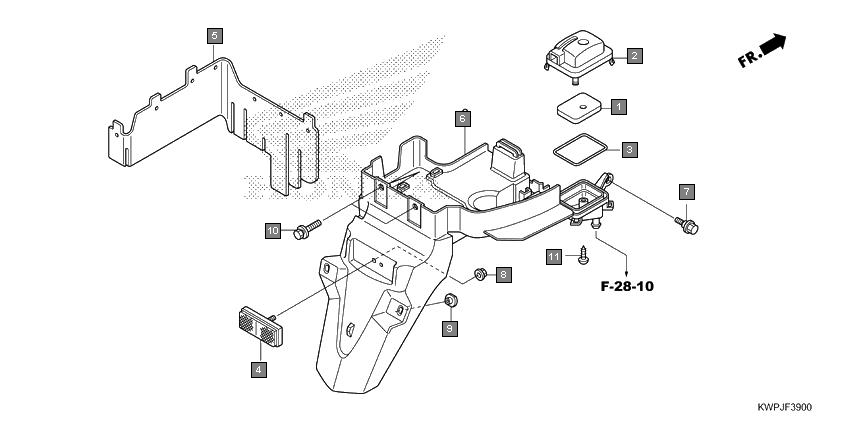

Scooters Activa SCV110J Frame Rear fender
Ref.No. Part No. Description Oty
1 18805KPL900 ELEMENT, SUB AIR CLEANER 1
2 18807KPL900 COVER, SUB AIR CLEANER 1
3 18812KPL900 SEAL, SUB AIR CLEANER 1
4 33741KPL902 REFLECTOR, REFLEX 1
5 80104KPL900 PLATE, RR. FENDER SPLASH GUARD 1
6 80105KWP901 FENDER, RR. 1
7 90111KWP900 BOLT, INNER COVER 1
8 90301KWN901 NUT, U, 5MM 1
9 90311KTE910 NUT, RR. FENDER 2
10 934040601208 BOLT-WASHER, 6X12 2
11 9390325480 SCREW, TAPPING, 5X20 1
