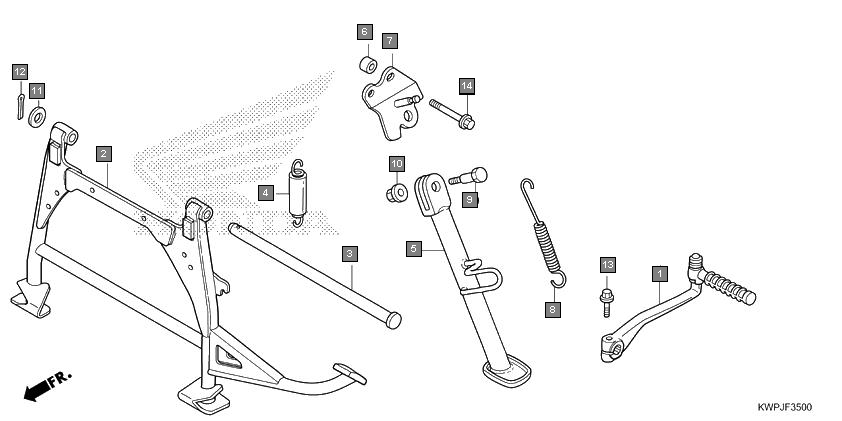

Scooters Activa SCV110J Frame Kick starter arm/stand
Ref.No. Part No. Description Oty
1 28300K32700 ARM ASSY., KICK STARTER 1
2 50500KZKD00 STAND COMP., MAIN 1
3 50503GCC000 SHAFT, MAIN STAND 1
4 50505KWPE00 SPRING ASSY., MAIN STAND 1
5 50530KWPD00 BAR COMP., SIDE STAND 1
6 50532KWPD00 COLLAR, SIDE STAND 2
7 50535KWPD00 BRACKET, SIDE STAND 1
8 50536KPL900 SPRING, SIDE STAND 1
9 90109KPL900 BOLT, SIDE STAND PIVOT 1
10 90304KTE911 NUT, FLANGE SPECIAL, 10MM (SIMMODS MARSHALL) 1
11 9410212000 WASHER, PLAIN, 12MM 1
12 9420125250 PIN, SPLIT, 2.5X25 1
13 957010802507 BOLT, FLANGE, 8X25 1
14 958021007007 BOLT, FLANGE, 10X70 2
15 958011007007 BOLT, FLANGE, 10X70 2
