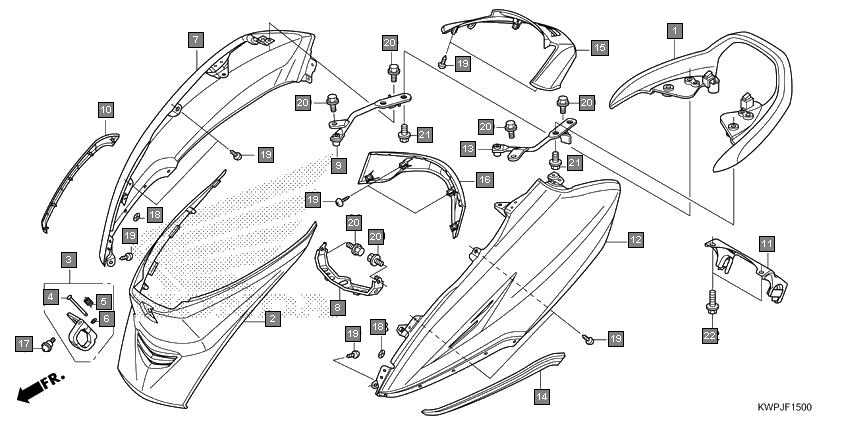

Scooters Activa SCV110J Frame Body cover
Ref.No. Part No. Description Oty
1 77300KWPD00ZA GRIP, RR. *NH35M* CLOUD SILVER METALLIC 1
2 80151KWPH00ZA COVER, CENTER *NH1* BLACK 1
3 81132K24G00 HOOK, LUGGAGE 1
4 81136KTF670 PIN, HOOK 1
5 81137KTF670 SPRING, HOOK 1
6 81138KTF670 CIRCLIP 1
7 83500KWPP20ZZ COVER COMP., R. BODY 1
8 83510KWPP10ZZ STAY, FR. BODY COVER 1
9 83511KWPP10ZZ PIPE, R. GRIP SUPPORT 1
10 83520KWPF01 MOUL, R. BODY COVER 1
11 83560KWPF00 HINGE, BODY COVER 1
12 83600KWPP20ZZ COVER COMP., L. BODY 1
13 83611KWPP10ZZ PIPE, L. GRIP SUPPORT 1
14 83620KWPF01 MOUL, L. BODY COVER 1
15 83750KWPF01ZN COVER, RR. CENTER *NHC41P* PEARL PRECIOUS WHITE 1
16 83750KWPF01ZA COVER,RR.CENTER*YR329M* MAJESTIC BROWN METALLIC 1
17 83750KWPF01ZL COVER, RR. CENTER *R382P* PEARL SPARTAN RED 1
18 83750KWPF01ZK COVER, RR. CENTER *Y230M* DAZZLE YELLOW METALLIC 1
19 83750KWPF01ZJ COVER, RR. CENTER*NHB60M* MAT SELENE SILVER METALLIC 1
20 83750KWPF01ZD COVER, RR. CENTER *NHB63P*..PEARL AMAZING WHITE 1
21 83750KWPF01ZF COVER, RR. CENTER *B220M* TRANCE BLUE METALLIC 1
22 83750KWPF01ZH COVER, RR. CENTER*NH303M* MAT AXIS GRAY METALLIC 1
23 83750KWPF01ZC COVER, RR. CENTER *NH1* BLACK 1
24 83751KWPF00ZK COVER, RR. CENTER LOWER *Y230M* DAZZLE YELLOW METALLIC 1
25 83751KWPF00ZA COVER, RR. CENTER LOWER *YR329M* MAJESTIC BROWN METALLIC 1
26 83751KWPF00ZN COVER, RR. CENTER LOWER *NHC41P* PEARL PRECIOUS WHITE 1
27 83751KWPF00ZJ COVER, RR. CENTER LOWER *NHB60M* MAT SELENE SILVER METALLIC 1
28 83751KWPF00ZC COVER, RR. CENTER LOWER *NH1* BLACK 1
29 83751KWPF00ZH COVER, RR. CENTER LOWER *NH303M* MAT AXIS GRAY METALLIC 1
30 83751KWPF00ZD COVER, RR. CENTER LOWER *NHB63P* PEARL AMAZING WHITE 1
31 83751KWPF00ZF COVER, RR. CENTER LOWER *B220M* TRANCE BLUE METALLIC 1
32 83751KWPF00ZL COVER, RR. CENTER LOWER *R382P* PEARL SPARTAN RED 1
33 90102GB2720 SCREW, PAN, 5X16 2
34 90302KWPE00 NUT, PUSH, 3MM 10
35 9390334380 SCREW, TAPPING, 4X12 14
36 957010601208 BOLT, FLANGE, 6X12 6
37 957010801208 BOLT, FLANGE, 8X12 4
38 957011002008 BOLT, FLANGE, 10X20 2
39 83750KWPF01ZP COVER, RR. CENTER *YR367M* MAJESTIC BROWN METALLIC 2 1
40 83750KWPF01ZQ COVER, RR. CENTER *NHC40M* MAT SELENE SILVER METALLIC 2 1
41 83751KWPF00ZP COVER, RR. CENTER LOWER *YR367M* MAJESTIC BROWN METALLIC 2 1
42 83751KWPF00ZQ COVER, RR. CENTER LOWER *NHC40M* MAT SELENE SILVER METALLIC 2 1
