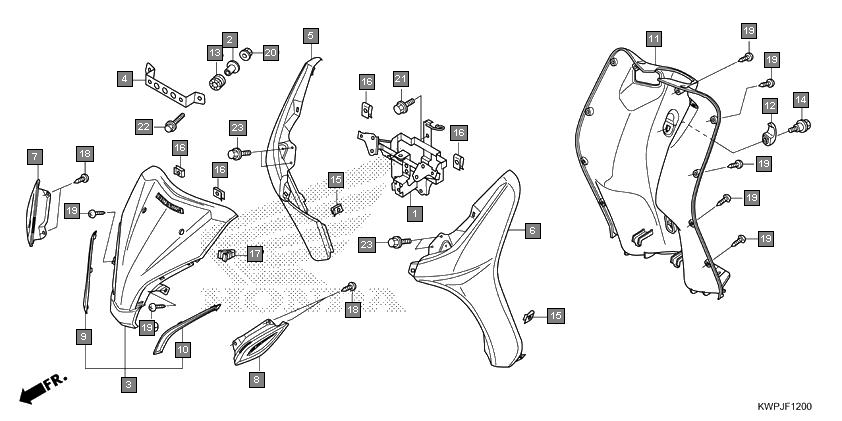

Scooters Activa SCV110J Frame Front cover
Ref.No. Part No. Description Oty
1 50330KWPH00 TRAY COMP., BATTERY 1
2 61104428730 COLLAR, FR. FENDER(BLACK)..... (FOR RR.) 2
3 64200KWPH00ZE COVER SET, FR.(WL) *TYPE4* 1
4 64200KWPH00ZA COVER SET, FR.(WL) *TYPE8* 1
5 64200KWPH00ZD COVER SET, FR.(WL) *TYPE5* 1
6 64200KWPH00ZF COVER SET, FR.(WL) *TYPE3* 1
7 64200KWPH00ZG COVER SET, FR.(WL) *TYPE2* 1
8 64200KWPH00ZB COVER SET, FR.(WL) *TYPE7* 1
9 64200KWPH00ZC COVER SET, FR.(WL) *TYPE6* 1
10 64200KWPH00ZH COVER SET, FR.(WL) *TYPE1* 1
11 64303KWPF00 STAY, FR. NUMBER PLATE 1
12 64304KWPF00ZZ COVER COMP., R. FR. 1
13 64305KWPF00ZZ COVER COMP., L. FR. 1
14 64307KWPH00 LOUVER, R. FR. COVER 1
15 64308KWPH00 LOUVER, L. FR. COVER 1
16 64380KWPH00 GARNISH, R. FR. COVER 1
17 64390KWPH00 GARNISH, L. FR. COVER 1
18 81131KWPH00ZA COVER, INNER *NH1* BLACK 1
19 81132KWPH00ZA HOOK, LUGGAGE 1
20 84703425000 RUBBER, TAILLIGHT MOUNTING 2
21 90107KVB900 BOLT, SPECIAL, 6MM 1
22 90344KRB900 NUT, CLIP, 5MM 10
23 90344KRP900 NUT, CLIP, 5MM 4
24 90601SJA003 CLIP, SNAP FITTING 4
25 9390325280 SCREW, TAPPING, 5X12 4
26 9390325380 SCREW, TAPPING, 5X16 12
27 9405006080 NUT, FLANGE, 6MM 2
28 957010601208 BOLT, FLANGE, 6X12 3
29 957010602507 BOLT, FLANGE, 6X25 2
30 958010601008 BOLT, FLANGE, 6X10 4
31 64200KWPH00ZL COVER SET, FR.(WL) *TYPE9* 1
32 64200KWPH00ZM COVER SET, FR.(WL) *TYPE11* 1
33 64200KWPH00ZN COVER SET, FR.(WL) *TYPE10* 1
