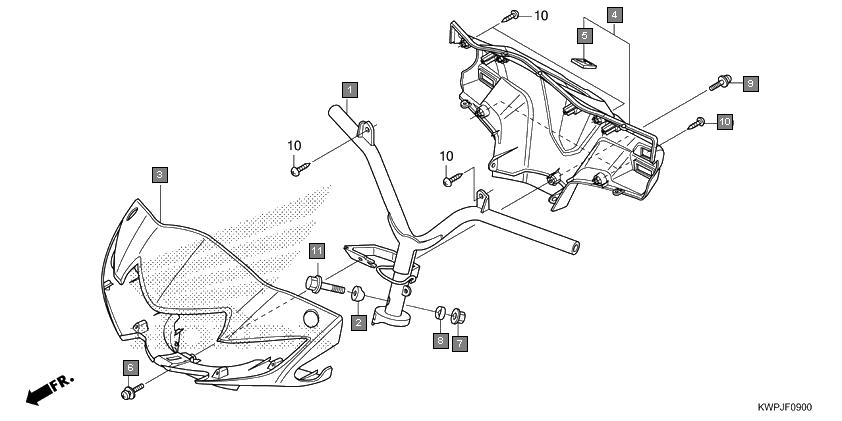

Scooters Activa SCV110J Frame Steering handle/handle cover
Ref.No. Part No. Description Oty
1 53100KWPH00 HANDLE COMP., STEERING 1
2 53124KWP900 COLLAR, HANDLE SETTING 1
3 53205KWPH00ZJ COVER, FR. HANDLE *NHC40M* MAT SELENE SILVER METALLIC 2 1
4 53205KWPH00ZA COVER, FR. HANDLE *Y230M* DAZZLE YELLOW METALLIC 1
5 53205KWPH00ZG COVER, FR. HANDLE *NHB60M* MAT SELENE SILVER METALLIC 1
6 53205KWPH00ZE COVER, FR. HANDLE *NH1* BLACK 1
7 53205KWPH00ZF COVER, FR. HANDLE *NHB63P* PEARL AMAZING WHITE 1
8 53205KWPH00ZH COVER, FR. HANDLE *B220M* TRANCE BLUE METALLIC 1
9 53205KWPH00ZC COVER, FR. HANDLE *R382P* PEARL SPARTAN RED 1
10 53205KWPH00ZB COVER, FR. HANDLE *YR329M* MAJESTIC BROWN METALLIC 1
11 53205KWPH00ZD COVER, FR. HANDLE*NH303M* MAT AXIS GRAY METALLIC 1
12 53250KWPH20ZA COVER COMP., HANDLE RR. *NH1* BLACK 1
13 53250KWPH00ZA COVER COMP., HANDLE RR. *NH1* BLACK 1
14 86150KWS601 EMBLEM, PRODUCT(SJS) 1
15 90101KWPG00 SCREW-WASHER, 5X19 1
16 90304KTE911 NUT, FLANGE SPECIAL, 10MM (SIMMODS MARSHALL) 1
17 90502KWP900 COLLAR B, HANDLE SETTING 1
18 938910501607 SCREW-WASHER, 5X16 1
19 9390334380 SCREW, TAPPING, 4X12 6
20 958011005508 BOLT, FLANGE, 10X55 1
21 53205KWPH00ZL COVER, FR. HANDLE *YR367M* MAJESTIC BROWN METALLIC 2 1
22 53205KWPH00ZM COVER, FR. HANDLE *NHC41P* PEARL PRECIOUS WHITE 1
