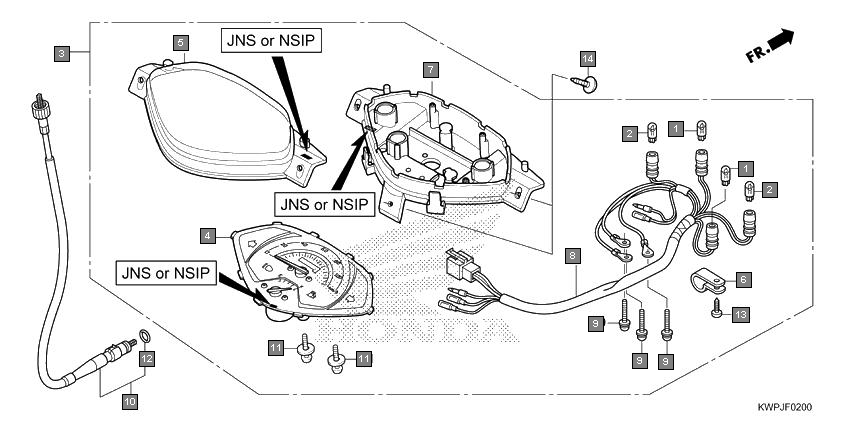

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 34908KVE900 | BULB, WEDGE BASE(T10) (12V 1.7W)(TOSHIBA) | 2 |
2 | 34909KVE900 | BULB, WEDGE BASE(T10)(12V 3W) | 2 |
3 | 37200KWPH01 | SPEEDOMETER ASSY. (NIPPON SEIKI) | 1 |
4 | 37210KWPH01 | METER COMP., SPEED & FUEL (NIPPON SEIKI) | 1 |
5 | 37211KWPH01 | LENS | 1 |
6 | 37215MB6831 | CLAMP | 1 |
7 | 37220KWPH01 | CASE ASSY., LOWER | 1 |
8 | 37224KWPH01 | SOCKET COMP. | 1 |
9 | 37305KE5008 | SCREW-WASHER, 3X22 | 3 |
10 | 44830KWP902 | CABLE COMP., SPEEDOMETER | 1 |
11 | 90035166008 | SCREW-WASHER, SPECIAL, 4X10 | 2 |
12 | 91352671003 | O-RING, 8.5X1.5(ARAI) | 1 |
13 | 90109MZ5008 | SCREW, TAPPING, 4X14 | 1 |
14 | 9390325380 | SCREW, TAPPING, 5X16 | 3 |
