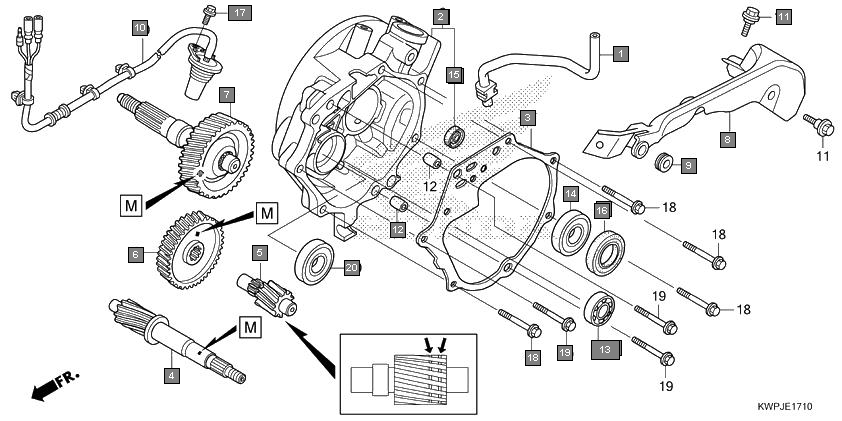

Scooters Activa SCV110J Engine Transmission(musashi)
Ref.No. Part No. Description Oty
1 11220KWPH00 TUBE, MISSION BREATHER 1
2 21200KWPH20 CASE COMP., MISSION 1
3 21200KWPH00 CASE COMP., MISSION 1
4 21395KWP901 GASKET, TRANSMISSION CASE 1
5 23411KVTF00 DRIVESHAFT(19T) 1
6 23421KWPH00 COUNTERSHAFT(13T) 1
7 23422KWPF00 GEAR, COUNTER(51T) 1
8 23430KWPH00 GEAR COMP., FINAL(49T) 1
9 32112K24900 PROTECTOR, SPEED SENSOR 1
10 32113KWN900 GROMMET, SPEED SENSOR PROTECTOR 1
11 37700KWPH21 SENSOR ASSY., SPEED 1
12 90100K24900 BOLT, FLANGE, 6MM 2
13 90701KPL900 DOWEL PIN, SPECIAL, 8X14 2
14 91006KWPG31 BEARING, RADIAL BALL, 6201 (NBC) 1
15 91006KWPG32 BEARING, RADIAL BALL, 6201 (FAG) 1
16 91008KWPD02 BEARING, RADIAL BALL, 6004UU(FAG) 1
17 91008KWPD03 BEARING, RADIAL BALL, 6004UU(NEI LTD) 1
18 91203KPL901 OIL SEAL, 14X20X3.2 1
19 91204KWPD01 OIL SEAL, 14X20X3.2(FENNER) 1
20 91225KWPD02 OIL SEAL, 27X42X7(FENNER) 1
21 91225KWPD01 OIL SEAL, 27X42X7 1
22 957010601800 BOLT, FLANGE, 6X18 1
23 957010603000 BOLT, FLANGE, 6X30 4
24 957010604000 BOLT, FLANGE, 6X40 3
25 961006301000 BEARING, RADIAL BALL, 6301 1
26 91008KWPD01 BEARING, RADIAL BALL, 6004UU(NSK) 1
