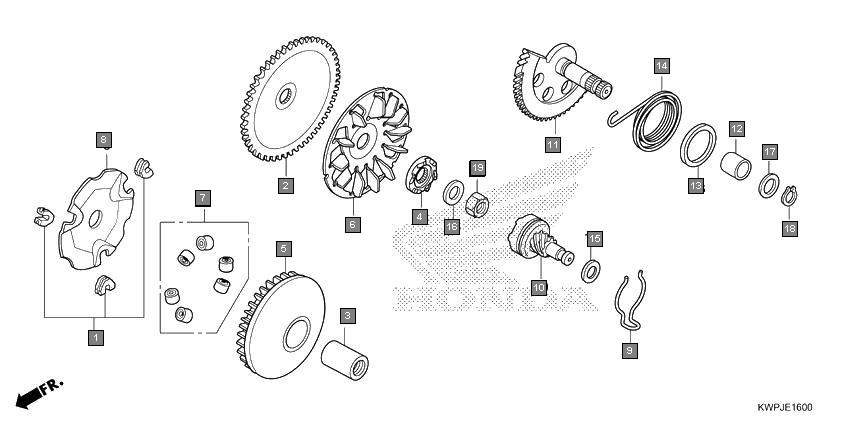

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 22011KWPG30 | PIECE SET, SLIDE | 1 |
2 | 22102KWPD00 | FACE, DRIVE(69T) | 1 |
3 | 22105KWPD00 | BOSS, DRIVE FACE | 1 |
4 | 22109KZL840 | RATCHET, STARTER | 1 |
5 | 22110KWPD00 | FACE COMP., MOVABLE DRIVE | 1 |
6 | 22113KWPD00 | FIN, DRIVE FACE | 1 |
7 | 22123KWN780 | ROLLER SET, WEIGHT | 1 |
8 | 22123KWPD00 | ROLLER SET, WEIGHT | 1 |
9 | 22131KWPD00 | PLATE, RAMP | 1 |
10 | 28223KZL840 | SPRING, KICK DRIVEN GEAR | 1 |
11 | 28230KWPH00 | GEAR COMP., KICK DRIVEN(7T) | 1 |
12 | 28250KWPH00 | SPINDLE COMP., KICK STARTER (57T) | 1 |
13 | 28253KVT900 | BUSH, KICK SPINDLE | 1 |
14 | 28255KPL900 | COLLAR, KICK BOSS | 1 |
15 | 28281K32700 | SPRING, KICK RETURN | 1 |
16 | 90412KZL840 | WASHER, THRUST, 10MM | 1 |
17 | 90426KVB900 | WASHER, SPECIAL, 14MM | 1 |
18 | 90451KVT900 | WASHER, KICK SPINDLE | 1 |
19 | 90608KVT901 | CIRCLIP, EXTERNAL, 16MM | 1 |
20 | 9403014200 | NUT, HEX., 14MM | 1 |
