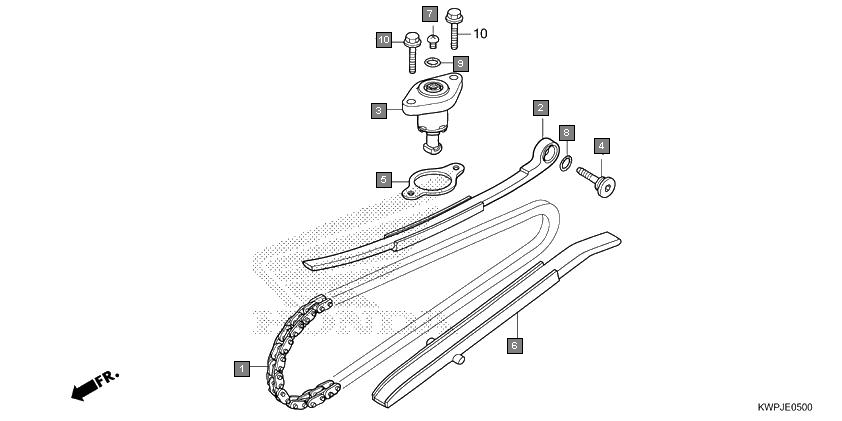

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 14401KWP901 | CHAIN, CAM(90L) | 1 |
2 | 14510KWP900 | TENSIONER, CAM CHAIN | 1 |
3 | 14520KZKD21 | LIFTER ASSY., TENSIONER(ADVIK) | 1 |
4 | 14531GCC000 | PIVOT, CAM CHAIN TENSIONER | 1 |
5 | 14560KCW880 | GASKET, TENSIONER LIFTER | 1 |
6 | 14611KWP900 | GUIDE, CAM CHAIN | 1 |
7 | 90005KY7000 | SCREW, PAN, 6X6 | 1 |
8 | 91301HM5630 | O-RING, 15.2X1.5 | 1 |
9 | 91306105690 | O-RING, 1.5X9.5 | 1 |
10 | 957010602200 | BOLT, FLANGE, 6X22 | 2 |
