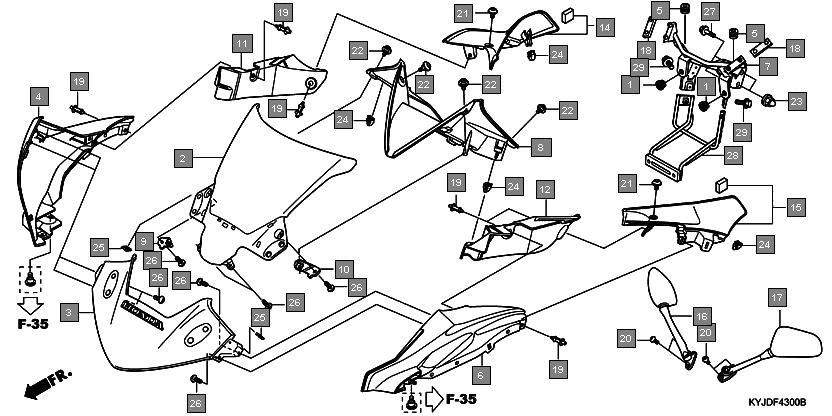

Motorcycles CBR250R CBR250RB Frame Upper cowl
Ref.No. Part No. Description Oty
1 61304KRY900 RUBBER, HEADLIGHT CASE MOUNTING 2
2 64110KYJ900 WINDSCREEN 1
3 64200KYJ610ZB COWL SET, FR. UPPER(WL) *TYPE2* 1
4 64200KYJ610ZC COWL SET, FR. UPPER(WL) *TYPE1* 1
5 64200KYJ610ZA COWL SET, FR. UPPER(WL) *TYPE3* 1
6 64210KPPT00ZH COWL, R. FR. SIDE *NH411M* FORCE SILVER METALLIC 1
7 64216GJ2730 RUBBER, SCREEN SETTING 2
8 64220KPPT00ZH COWL, L. FR. SIDE *NH411M* FORCE SILVER METALLIC 1
9 64221KYJ710 STAY COMP., FR. COWL UPPER 1
10 64260KPPT00 COWL, FR. INNER 1
11 64261KPPT00 STAY, R. FR. INNER COWL 1
12 64262KPPT00 STAY, L. FR. INNER COWL 1
13 64270KPPT00 COWL, R. SIDE INNER 1
14 64280KPPT00 COWL, L. SIDE INNER 1
15 64500KYJ710ZA LID ASSY., R. TANK *R4C* CANDY RUBY RED 1
16 64500KYJ710ZC LID ASSY., R. TANK *NHA35M* ASTEROID BLACK METALLIC 1
17 64500KYJ710ZB LID ASSY., R. TANK *NHA95M* SWORD SILVER METALLIC 1
18 64600KYJ710ZA LID ASSY., L. TANK *R4C* CANDY RUBY RED 1
19 64600KYJ710ZC LID ASSY., L. TANK *NHA35M* ASTEROID BLACK METALLIC 1
20 64600KYJ710ZB LID ASSY., L. TANK *NHA95M* SWORD SILVER METALLIC 1
21 88110KYJ711 MIRROR ASSY., R. BACK 1
22 88120KYJ711 MIRROR ASSY., L. BACK 1
23 88201KPPT00 RUBBER, BACK MIRROR 2
24 90116KWT900 RIVET, PUSH, 7MM 6
25 90130KPPT00 BOLT, SOCKET, 6X13 4
26 90132KPPT00 SCREW, PAN, 6X10 2
27 90134KPPT00 SCREW, PAN, 5X14 4
28 90307KYJ710 NUT, CAP, 8MM 2
29 90666SDAA01 CLIP, SNAP FITTING(PO)(NATURAL) 4
30 90677KANT00 NUT, CLIP, 5MM 2
31 9390324380 SCREW, TAPPING, 4X12 8
32 958010803200 BOLT, FLANGE, 8X32 2
33 958020803200 BOLT, FLANGE, 8X32 2
34 64225KYJ710 BRAKET COMP., FR. NUMBER PLATE 1
35 957010801200 BOLT, FLANGE, 8X12 2
36 957020801200 BOLT, FLANGE, 8X12 2
