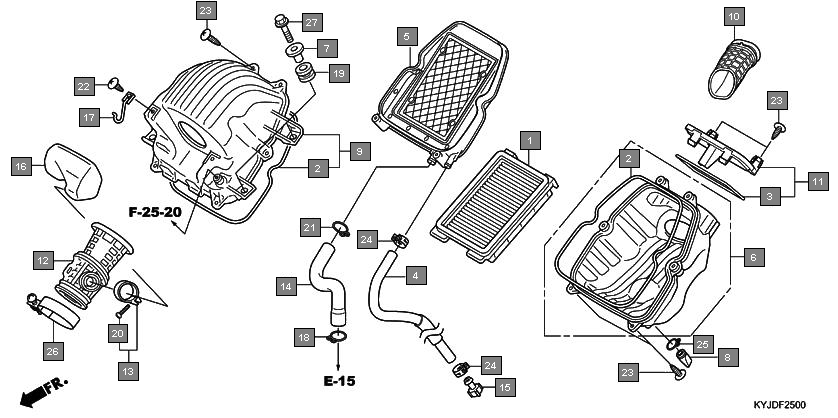

Motorcycles CBR250R CBR250RB Frame Air cleaner
Ref.No. Part No. Description Oty
1 17211KYJ710 ELEMENT COMP., AIR CLEANER 1
2 17213KYJ900 SEAL, AIR CLEANER 2
3 17214KYJ900 SEAL, LID 1
4 17215KYJ900 TUBE, AIR CLEANER DRAIN 1
5 17220KYJ710 HOLDER COMP., ELEMENT 1
6 17225KYJ710 CASE SUB ASSY., AIR CLEANER 1
7 17232KYJ900 COLLAR, AIR CLEANER MOUNTING 4
8 17234KCW871 TUBE, AIR CLEANER DRAIN 1
9 17235KYJ710 COVER SUB ASSY., AIR CLEANER 1
10 17240KYJ710 DUCT, INLET 1
11 17245KYJ710 LID SUB ASSY., AIR CLEANER 1
12 17253KYJ710 TUBE, AIR CLEANER CONNECTING 1
13 17255MCG000 BAND, RESONATOR(28) 1
14 17265KYJ900 TUBE, BREATHER 1
15 17370419700 PLUG, BREATHER TUBE 1
16 17410KYJ710 RESONATOR 1
17 17512KYJ960 GUIDE, BREATHER TUBE 1
18 17724102700 CLIP, SUB TANK HOSE 1
19 83545KCJ690 RUBBER, SIDE COVER 4
20 90227GHRE00 SCREW, PAN, 5X25 1
21 90646657000 CLIP, AIR HOSE, 16MM 1
22 9390325280 SCREW, TAPPING, 5X12 1
23 9390325480 SCREW, TAPPING, 5X20 10
24 950024120000 CLAMP, TUBE(D12) 2
25 9500280000 CLIP, TUBE(C12) 1
26 9501856250 BAND, AIR CLEANER CONNECTING TUBE(56) 1
27 957010602008 BOLT, FLANGE, 6X20 4
28 957020602008 BOLT, FLANGE, 6X20 4
