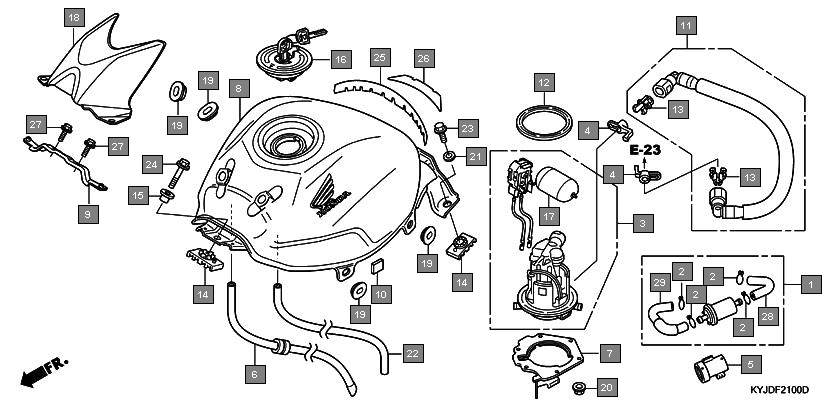

Motorcycles CBR250R CBR250RB Frame Fuel tank
Ref.No. Part No. Description Oty
1 06160KYJ900 FILTER KIT, FUEL 1
2 15771KV6000 CLIP, OIL DRAIN TUBE 4
3 16700KYJ901 PUMP ASSY., FUEL 1
4 16718KTW900 DAMPER A, CONNECTOR 2
5 16912KYJ900 HOLDER, FUEL FILTER 1
6 17418KYJ960 TUBE, FUEL TANK BREATHER 1
7 17507KYJ900 PLATE COMP., SETTING 1
8 17520KYJ900ZA TANK SET, FUEL(WL)*TYPE1* 1
9 17520KYJ900ZB TANK SET, FUEL(WL)*TYPE2* 1
10 17520KYJ900ZG TANK SET, FUEL(WL)*TYPE3 1* 1
11 17522KPPT00 STAY, TANK LID 1
12 17525KPPT00 RUBBER, FUEL TANK 2
13 17570KYJ901 HOSE COMP., FUEL FEED 1
14 17572KTR941 GASKET, FUEL PUMP 1
15 17577KSSB31 RETAINER(GRAY)(TOKAI) 2
16 17613KPPT00 CUSHION, FUEL TANK 3
17 17614KPPT00 COLLAR, FUEL TANK 1
18 17620MCB611 CAP COMP., FUEL FILLER 1
19 37800KYJ901 FUEL UNIT 1
20 64450KPPT00ZA COVER, FUEL TANK *NHA35M* ASTEROID BLACK METALLIC 1
21 64450KPPT00ZG COVER, FUEL TANK *R4C* CANDY RUBY RED 1
22 64450KPPT00ZH COVER, FUEL TANK *NHA95M* SWORD SILVER METALLIC 1
23 83551300000 GROMMET, AIR CLEANER CASE 6
24 9405006000 NUT, FLANGE, 6MM 6
25 9410306800 WASHER, PLAIN, 6MM 2
26 950058077020 TUBE, 8X770(95005-80001-20M) 1
27 957010601208 BOLT, FLANGE, 6X12 2
28 957020601208 BOLT, FLANGE, 6X12 2
29 957010802508 BOLT, FLANGE, 8X25 1
30 957020802508 BOLT, FLANGE, 8X25 1
31 17527KPPN00 FILM A,TANK PROTECTOR 1
32 17528KPPN00 FILM B, TANK PROTECTOR 1
33 934010601400 BOLT-WASHER, 6X14 2
34 17541KYJ900 TUBE A, FUEL PUMP 1
35 17542KYJ900 TUBE B, FUEL PUMP 1
