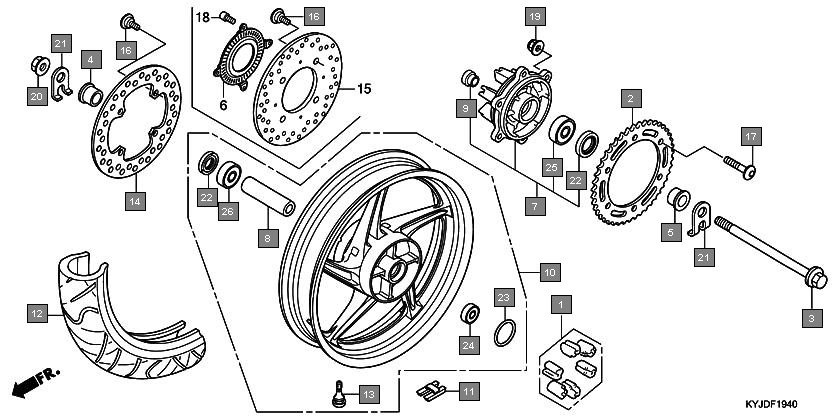

Motorcycles CBR250R CBR250RB Frame Rear wheel
Ref.No. Part No. Description Oty
1 06410KEA750 DAMPER SET, WHEEL 1
2 41201KYJ900 SPROCKET, FINAL DRIVEN(38T) 1
3 42301KYJ900 AXLE, RR. WHEEL 1
4 42312KYJ900 COLLAR, R. RR. WHEEL SIDE 1
5 42313KYJ900 COLLAR, L. RR. WHEEL SIDE 1
6 42615KYJ710ZA FLANGE SUB ASSY., RR. DRIVEN *NH146M* ACCURATE SILVER METALLIC 1
7 42620KYJ900 COLLAR, RR. WHEEL DISTANCE 1
8 42625MC4000 COLLAR B, RR. AXLE DISTANCE 1
9 42650KYJ710ZA WHEEL SUB ASSY., RR. *NH146M* ACCURATE SILVER METALLIC 1
10 42704MERD00 WEIGHT, BALANCE(10G) 0
11 42705MERD00 WEIGHT, BALANCE(20G) 0
12 42706MERD00 WEIGHT, BALANCE(30G) 0
13 42711KYJ712 TIRE, RR.(CONTINENTAL) (140/70-17M/C66S) 1
14 42711KYJ713 TIRE, RR.(CONTINENTAL) (140/70-17M/C66S) 1
15 42711KYJ902 TIRE, RR.(IRC) (140/70-17M/C 66S) 1
16 42753KWF901 VALVE, RIM(TRITON) 1
17 43251KYJ712 DISK, RR. BRAKE 1
18 90105KSP870 BOLT, DISK, 8X24 4
19 90128KYJ900 BOLT, SPROCKET FIXING 6
20 90304KTE911 NUT, FLANGE SPECIAL, 10MM (SIMMODS MARSHALL) 6
21 90305KYJ711 NUT, FLANGE, 16MM (PREVAILING TORQUE) 1
22 90306KCJ951 NUT, U, 16MM 1
23 90559KYJ900 WASHER, RR. SWINGARM 2
24 91253443761 DUST SEAL, 30X47X8(ARAI) 2
25 91253443762 DUST SEAL, 30X47X8(NOK) 2
26 91302317700 O-RING, 54X2 1
27 91081KYJ711 BEARING, RADIAL BALL, 6203UU (NEI) 1
28 961506203010 BEARING, RADIAL BALL, 6203UU 1
29 91082KYJ711 BEARING, RADIAL BALL, 6204UU (NEI) 1
30 961506204010 BEARING, RADIAL BALL, 6204UU 1
31 91083KYJ711 BEARING, RADIAL BALL, 6303UU (NEI) 1
32 961506303010 BEARING, RADIAL BALL, 6303UU 1
