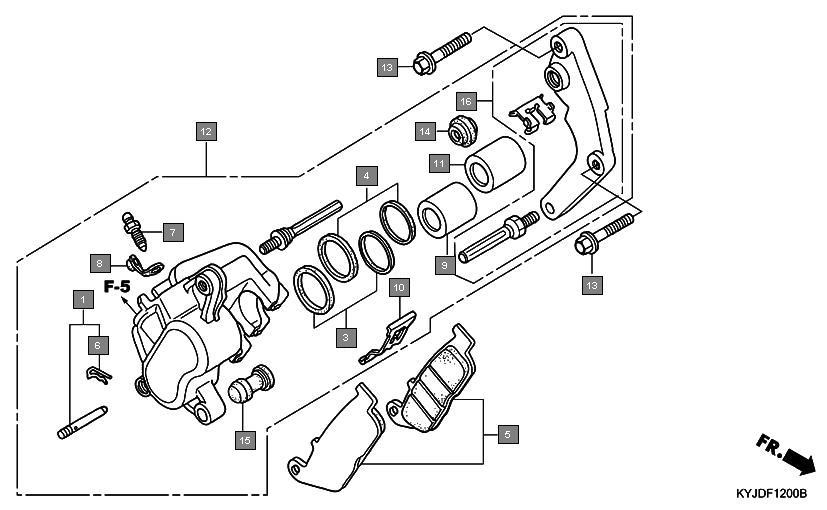

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 06436KYJ711 | PIN SET, HANGER | 1 |
2 | 06451KYJ711 | SEAL SET, PISTON(32) | 1 |
3 | 06452MAK003 | SEAL SET, PISTON | 1 |
4 | 06455KYJ711 | PAD SET, FR. | 1 |
5 | 43216KYJ711 | CLIP, HANGER PIN | 1 |
6 | 43352KYJ711 | SCREW, BLEEDER | 1 |
7 | 43353MAK003 | CAP, BLEEDER | 1 |
8 | 45107KYJ711 | PISTON, 32X28.5 | 1 |
9 | 45113KYJ711 | SPRING, PAD | 1 |
10 | 45117KYJ711 | PISTON, 30X28.5 | 1 |
11 | 45250KYJ711 | CALIPER SUB ASSY., R. FR. | 1 |
12 | 90131KYJ710 | BOLT, FLANGE, 8X32 | 2 |
13 | 43133KYJ711 | BOOT, SLIDE(MAIN) | 1 |
14 | 43134KYJ711 | BOOT, SLIDE(SUB) | 1 |
15 | 45290KYJ711 | BRACKET SUB ASSY., R. FR. | 1 |
