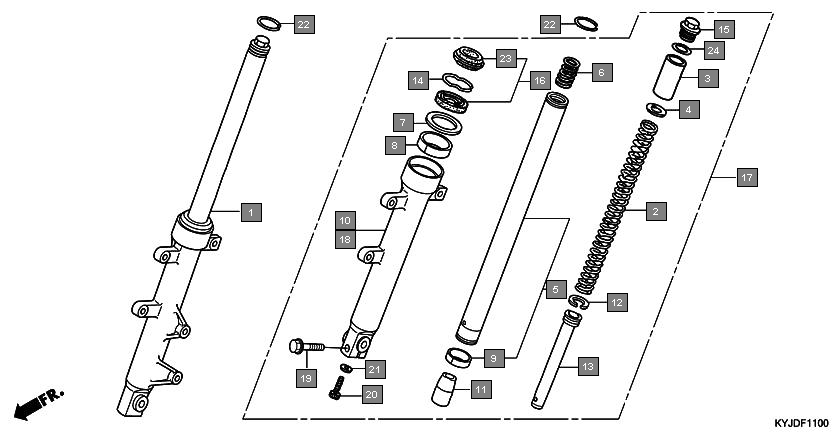

Motorcycles CBR250R CBR250RB Frame Front fork
Ref.No. Part No. Description Oty
1 51400KYJ711 FORK ASSY., R. FR. 1
2 51401KYJ901 SPRING, FR. FORK 2
3 51402KYJ711 COLLAR, SPRING 2
4 51403ME4003 SEAT, SPRING 2
5 51410KYJ901 PIPE COMP., FR. FORK 2
6 51411MG1003 SPRING, FR. FORK REBOUND 2
7 51412461003 RING, BACK UP 2
8 51414KFB901 BUSH, GUIDE 2
9 51415KFB901 BUSH, SLIDER 2
10 51420KYJ901 CASE, R. BOTTOM 1
11 51432KAZ003 PIECE, OIL LOCK 2
12 51437ML7691 RING, PISTON 2
13 51440KYJ711 PIPE, SEAT 2
14 51447KR6003 RING, OIL SEAL STOPPER 2
15 51450KAS901 BOLT COMP., FR. FORK 2
16 51490KWL003 SEAL SET, FR. FORK 2
17 51500KYJ711 FORK ASSY., L. FR. 1
18 51520KYJ901 CASE, L. BOTTOM 1
19 90109MR7000 BOLT, FLANGE, 8X45 1
20 90116KV3701 BOLT, SOCKET, 8MM(SHOWA) 2
21 90544283000 WASHER, SPECIAL, 8MM(SHOWA) 2
22 90602ME7003 RING, STOPPER 2
23 91254KAZ003 SEAL, DUST 2
24 91357ME4003 O-RING, 27.7X3.5 2
