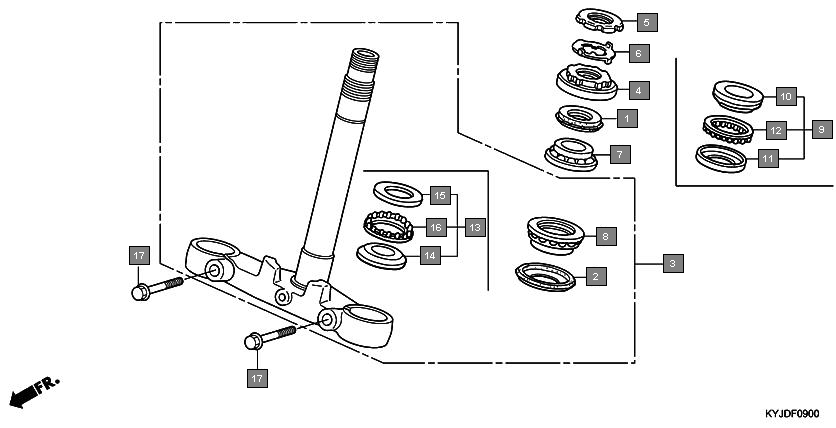

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 53213MB4771 | DUST SEAL, STEERING UPPER (ARAI) | 1 |
2 | 53214371010 | DUST SEAL, STEERING HEAD | 1 |
3 | 53219KYJ710 | STEM SUB ASSY., STEERING | 1 |
4 | 53220KYJ900 | THREAD COMP., STEERING HEAD TOP | 1 |
5 | 90302425830 | THREAD B, STEERING HEAD TOP | 1 |
6 | 90506425830 | WASHER, LOCK | 1 |
7 | 91015KT8005 | BEARING, HEAD PIPE UPPER(KOYO) | 1 |
8 | 91016KT8005 | BEARING, HEAD PIPE UNDER(KOYO) | 1 |
9 | 91051KYJ711 | BEARING, HEAD PIPE UPPER(SKF) | 1 |
10 | 91052KYJ711 | RACE, STEERING CONE | 1 |
11 | 91053KYJ711 | RACE, STEERING BALL | 1 |
12 | 91056KYJ711 | BALL ASSY., STEERING STEEL | 1 |
13 | 91061KYJ711 | BEARING, HEAD PIPE UNDER(SKF) | 1 |
14 | 91062KYJ711 | RACE, STEERING CONE | 1 |
15 | 91063KYJ711 | RACE, STEERING BALL | 1 |
16 | 91066KYJ711 | BALL ASSY., STEERING STEEL | 1 |
17 | 957011003507 | BOLT, FLANGE, 10X35 | 2 |
18 | 957021003507 | BOLT, FLANGE, 10X35 | 2 |
