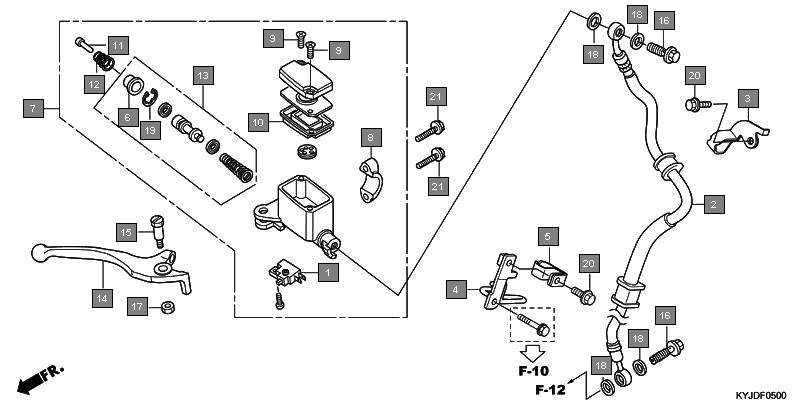

Motorcycles CBR250R CBR250RB Frame Front brake master cylinder(cbr250r)
Ref.No. Part No. Description Oty
1 35340MM5600 SWITCH ASSY., FR. STOP 1
2 45125KYJ712 HOSE COMP., FR. BRAKE 1
3 45155KYJ710 CLAMPER, FR. BRAKE HOSE 1
4 45156KYJ710 STAY, BRAKE HOSE CLAMP 1
5 45157KYJ710 CLAMPER B, FR. BRAKE HOSE 1
6 45504MAK003 BOOT COMP. 1
7 45510KYJ711 CYLINDER SUB ASSY., FR. BRAKE MASTER 1
8 45517MY5731 HOLDER, MASTER CYLINDER 1
9 45519MAK003 SCREW, FLAT, 4X20 2
10 45520MAK003 DIAPHRAGM 1
11 45525MAKE21 ROD, PUSH 1
12 45526MAKE21 SPRING, PUSH ROD 1
13 45530MAK003 CYLINDER SET, MASTER 1
14 53175KYJ710 LEVER, R. HANDLE 1
15 90114MAK003 BOLT, HANDLE LEVER 1
16 90145MS9612 BOLT, OIL, 10X22 2
17 90303MAK003 NUT, FLANGE, 6MM 1
18 90545300000 WASHER, OIL BOLT 4
19 90651MAK003 CIRCLIP 1
20 960010601207 BOLT, FLANGE, 6X12 2
21 960010602207 BOLT, FLANGE, 6X22 2
