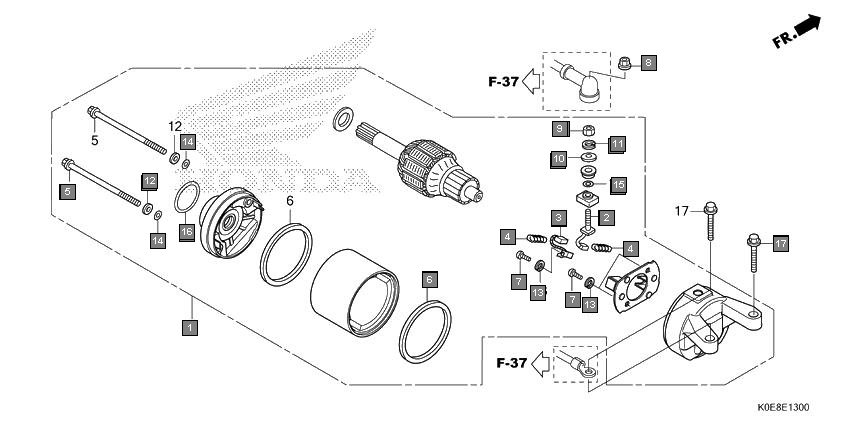

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 31200K0ED01 | MOTOR ASSY., STARTER(VARROC) | 1 |
2 | 31201KTED01 | BRUSH SET, TERMINAL(VARROC) | 1 |
3 | 31202KTED01 | BRUSH, CARBON | 1 |
4 | 31204KTED01 | SPRING, BRUSH(VARROC) | 2 |
5 | 31205KTED01 | BOLT, TIE(VARROC) | 2 |
6 | 31207KTED01 | SEAL, YOKE | 2 |
7 | 31208K0ED01 | SCREW, 4X7 | 3 |
8 | 90071KTED00 | NUT-WASHER, 6MM | 1 |
9 | 90201KTED01 | NUT, 6MM | 1 |
10 | 90401KTED01 | WASHER, PLAIN | 1 |
11 | 90402KTED01 | WASHER, SPRING | 1 |
12 | 90403KTED01 | WASHER, PLAIN | 2 |
13 | 90404KTED01 | WASHER, SPRING | 3 |
14 | 91301KTED01 | O-RING(TIE BOLT) | 2 |
15 | 91302KTED01 | O-RING(TERMINAL) | 1 |
16 | 91303KTED01 | O-RING(MOUNTING) | 1 |
17 | 957010602200 | BOLT, FLANGE, 6X22 | 2 |
