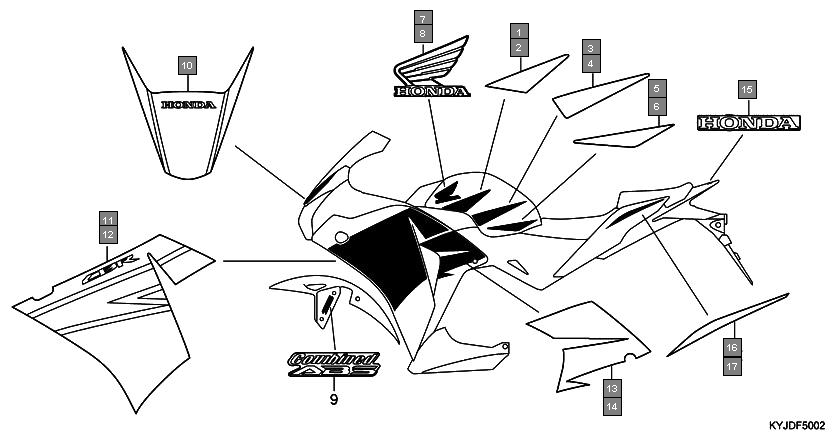

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 86171KYJT10ZA | STRIPE A, R. FUEL TANK *TYPE1* | 1 |
2 | 86172KYJT10ZA | STRIPE A, L. FUEL TANK *TYPE1* | 1 |
3 | 86175KYJT10ZA | STRIPE B, R. FUEL TANK *TYPE1* | 1 |
4 | 86176KYJT10ZA | STRIPE B, L. FUEL TANK *TYPE1* | 1 |
5 | 86177KYJT10ZA | STRIPE C, R. FUEL TANK *TYPE1* | 1 |
6 | 86178KYJT10ZA | STRIPE C, L. FUEL TANK *TYPE1* | 1 |
7 | 86201KYJT00ZB | MARK, R. WING(90MM) *TYPE3* | 1 |
8 | 86202KYJT00ZB | MARK, L. WING(90MM) *TYPE3* | 1 |
9 | 86611KYJE20ZC | MARK, ABS *TYPE2* | 2 |
10 | 86640KYJT10ZA | STRIPE, FR. UPPER COWL *TYPE1* | 1 |
11 | 86642KYJT10ZA | STRIPE, R. MIDDLE COWL *TYPE1* | 1 |
12 | 86643KYJT10ZA | STRIPE, L. MIDDLE COWL *TYPE1* | 1 |
13 | 86648KYJT10ZA | STRIPE, R. MIDDLE PANEL *TYPE1* | 1 |
14 | 86649KYJT10ZA | STRIPE, L. MIDDLE PANEL *TYPE1* | 1 |
15 | 86831KPPT00ZA | MARK, HONDA *TYPE1* | 1 |
16 | 86832KYJT10ZA | STRIPE, R. RR. COVER *TYPE1* | 1 |
17 | 86833KYJT10ZA | STRIPE, L. RR. COVER *TYPE1* | 1 |
