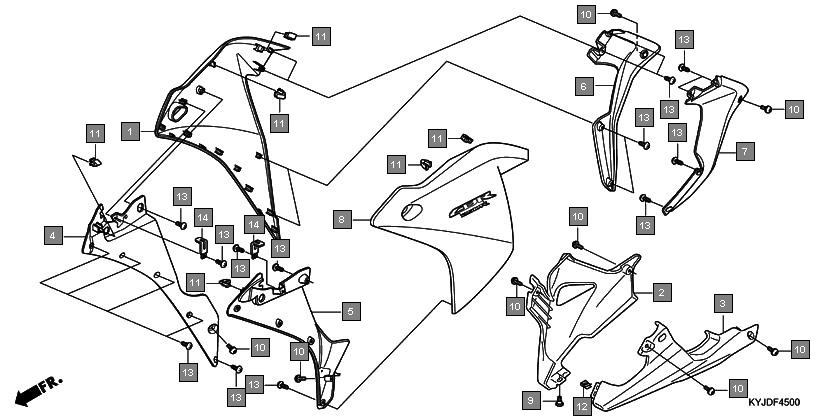

Motorcycles CBR250R CBR250RAD Frame Middle cowl/under cowl
Ref.No. Part No. Description Oty
1 64300KYJT10ZA COWL SET, R. MIDDLE(WL) *TYPE1* 1
2 64300KYJT00ZA COWL SET, R. MIDDLE(WL) *TYPE2* 1
3 64300KYJT00ZB COWL SET, R. MIDDLE(WL) *TYPE1* 1
4 64300KYJS90ZA COWL SET, R. MIDDLE(WL) *TYPE1* 1
5 64310KYJ900 COWL, R. UNDER 1
6 64320KYJ900 COWL, L. UNDER 1
7 64350KPPN00 COWL, R. INNER MIDDLE 1
8 64360KPPT00 COWL, L. INNER MIDDLE 1
9 64340KYJT10ZA PANEL SET, R. MIDDLE(WL) *TYPE1* 1
10 64370KYJ900ZG PANEL, R. MIDDLE *NH1* BLACK 1
11 64370KYJ900ZK PANEL, R. MIDDLE *R321* SPORTS RED 1
12 64370KPPT00 PANEL, R. MIDDLE 1
13 64440KYJT10ZA PANEL SET, L. MIDDLE(WL) *TYPE1* 1
14 64380KYJ900ZG PANEL, L. MIDDLE *NH1* BLACK 1
15 64380KYJ900ZK PANEL, L. MIDDLE *R321* SPORTS RED 1
16 64380KPPT00 PANEL, L. MIDDLE 1
17 64400KYJT00ZA COWL SET, L. MIDDLE(WL) *TYPE2* 1
18 64400KYJT10ZA COWL SET, L. MIDDLE(WL) *TYPE1* 1
19 64400KYJT00ZB COWL SET, L. MIDDLE(WL) *TYPE1* 1
20 64400KYJS90ZA COWL SET, L. MIDDLE(WL) *TYPE1* 1
21 90115KPP860 SCREW, VISOR SPECIAL SETTING 1
22 90132KPPT00 SCREW, PAN, 6X10 8
23 90666SDAA01 CLIP, SNAP FITTING(PO)(NATURAL) 6
24 90677KANT00 NUT, CLIP, 5MM 1
25 9390324380 SCREW, TAPPING, 4X12 22
26 9459145000 CLIP, WIRE, 4X50 2
