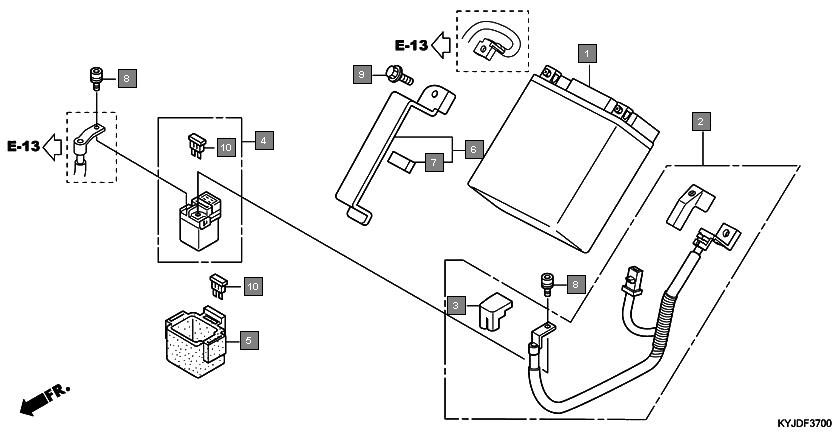

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 31500KRY801 | BATTERY ASSY.(ETZ7-BS)(EXIDE) | 1 |
2 | 31500KRY971 | BATTERY ASSY.(ETZ7)(EXIDE) | 1 |
3 | 32401KYJ901 | CABLE, STARTER MAGNETIC BATTERY | 1 |
4 | 32406KAZ010 | COVER, STARTER MAGNETIC TERMINAL | 1 |
5 | 35850MR5007 | SWITCH ASSY., STARTER MAGNETIC | 1 |
6 | 35856MBG003 | RUBBER, SHOCK | 1 |
7 | 80102KYJ900 | BAND COMP., BATTERY | 1 |
8 | 80109KYJ900 | SPONGE, RUBBER | 1 |
9 | 90111MR5000 | BOLT, SOCKET, 5X9 | 2 |
10 | 957010601208 | BOLT, FLANGE, 6X12 | 1 |
11 | 957020601208 | BOLT, FLANGE, 6X12 | 1 |
12 | 9820033000 | FUSE, BLADE(30A) | 2 |
