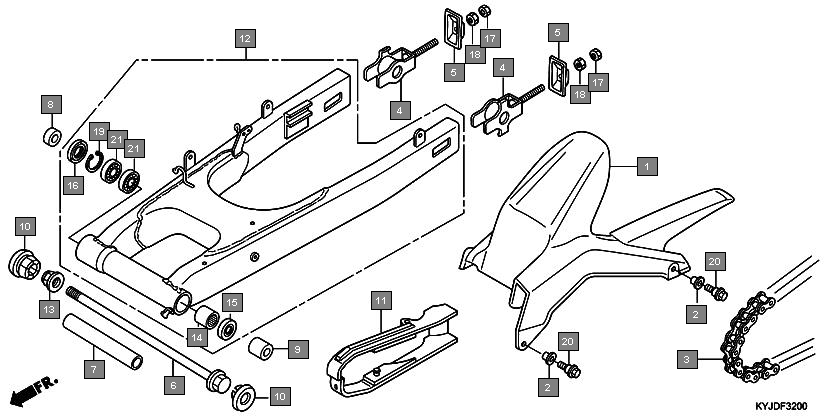

Motorcycles CBR250R CBR250RAD Frame Swingarm
Ref.No. Part No. Description Oty
1 40510KYJ900 CASE, DRIVE CHAIN 1
2 40511KYJ900 COLLAR 4
3 40530KYJ711 CHAIN, DRIVE(LGB) (R520BSOR-108LE) (ENDLESS TYPE) 1
4 40530KYJ901 CHAIN, DRIVE(RK520KLO-108LE) (ENDLESS TYPE) 1
5 40530KYJ902 CHAIN, DRIVE(DID520VF-108LE) (ENDLESS TYPE) 1
6 40543KYJ900 ADJUSTER COMP., CHAIN 2
7 40546KYJ900 CAP, SWINGARM END 2
8 40546KYJS90 CAP, SWINGARM END 2
9 52101KYJ900 BOLT, SWINGARM PIVOT 1
10 52102ML4000 COLLAR, PIVOT DISTANCE 1
11 52105MJ0000 COLLAR B, RR. FORK PIVOT 1
12 52106KYJ900 COLLAR, PIVOT 1
13 52161KYJ900 CAP, RR. FORK PIVOT 2
14 52170KYJ900 SLIDER, CHAIN 1
15 52200KYJ900 SWINGARM SUB ASSY., RR. 1
16 52200KYJS90 SWINGARM SUB ASSY., RR. 1
17 90305KVN901 NUT, FLANGE, 14MM (SIMMONDS MARSHALL) 1
18 91071MJ0003 BEARING, NEEDLE, 22X29X30(NTN) 1
19 91072KYJ711 BEARING, NEEDLE, 22X29X30(NRB) 1
20 91205965003 OIL SEAL, 22X31X5(ARAI) 1
21 91213MB2003 DUST SEAL, 22X35X7(ARAI) 1
22 91213MB2006 DUST SEAL, 22X35X7(NOK) 1
23 94002080000S NUT, HEX., 8MM 2
24 9403108000 NUT, HEX., 8MM 2
25 9452035000 CIRCLIP, INTERNAL, 35MM 1
26 957010601207 BOLT, FLANGE, 6X12 4
27 957020601207 BOLT, FLANGE, 6X12 4
28 961006202010 BEARING, RADIAL BALL, 6202 2
