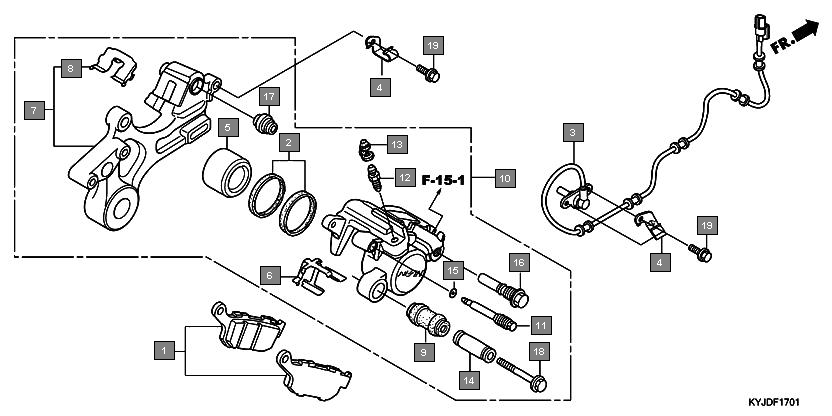

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 06435KYJ901 | PAD SET, RR. | 1 |
2 | 06451443405 | SEAL SET, PISTON | 1 |
3 | 38510KYJ911 | SENSOR, RR. WHEEL SPEED | 1 |
4 | 38517KYJ910 | CLAMPER, SPEED SENSOR CORD | 2 |
5 | 43107KT7761 | PISTON | 1 |
6 | 43108MBB006 | SPRING, PAD | 1 |
7 | 43110KFK631 | BRACKET COMP., RR. | 1 |
8 | 43112KT7761 | RETAINER | 1 |
9 | 43132KT7761 | BOOT, SLEEVE | 1 |
10 | 43150KYJ911 | CALIPER SUB ASSY., RR. | 1 |
11 | 43150KYJG91 | CALIPER SUB ASSY., RR. | 1 |
12 | 43215KZ4J41 | PIN, HANGER | 1 |
13 | 43352568003 | SCREW, BLEEDER(NISSIN) | 1 |
14 | 43353461771 | CAP, BLEEDER | 1 |
15 | 45111MA3006 | SLEEVE | 1 |
16 | 45111MAJG41 | RING, STOPPER | 1 |
17 | 45131MN9006 | BOLT, PIN | 1 |
18 | 45133MA3006 | BOOT B | 1 |
19 | 90180MN8006 | BOLT, FLANGE, 8X49 | 1 |
20 | 960010601007 | BOLT, FLANGE, 6X10 | 3 |
