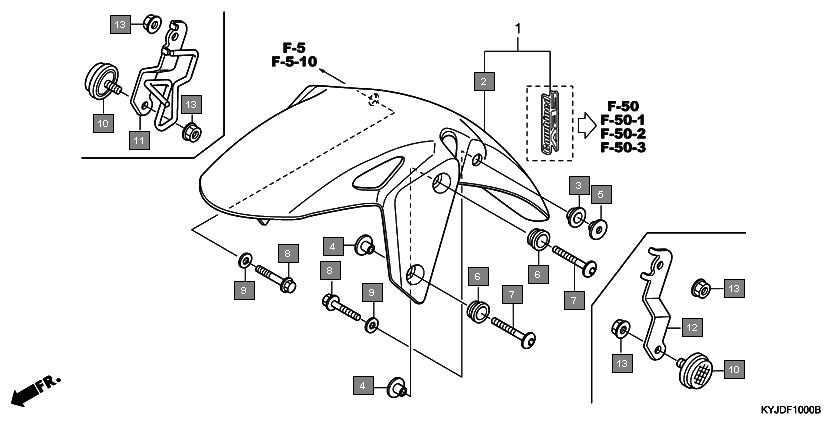

Motorcycles CBR250R CBR250RAD Frame Front fender
Ref.No. Part No. Description Oty
1 61000KYJS00ZD FENDER SET, FR.(WL) *TYPE3* 1
2 61000KYJS00ZA FENDER SET, FR.(WL) *TYPE4* 1
3 61000KYJS00ZB FENDER SET, FR.(WL) *TYPE1* 1
4 61000KYJS00ZE FENDER SET, FR.(WL) *TYPE2* 1
5 61103KPF910 RUBBER, FR. FENDER MOUNTING 2
6 61103KRY900 COLLAR A, FR. FENDER 4
7 61105KPF910 COLLAR, FR. FENDER MOUNTING 2
8 61105KRY900 RUBBER, FR. FENDER MOUNTING 4
9 90130KYJ900 SCREW, PAN, 6X22 4
10 960010603500 BOLT, FLANGE, 6X35 2
11 90485286000 WASHER, 6MM 2
12 33740KTE601 REFLECTOR, FR. SIDE REFLEX 2
13 60114KYJT00 STAY COMP., R. FR. SIDE REFLECTOR 1
14 60115KYJT00 STAY COMP., L. FR. SIDE REFLECTOR 1
15 90302KTE911 NUT, FLANGE SPECIAL, 6MM (SIMMONDS MARSHALL) 4
