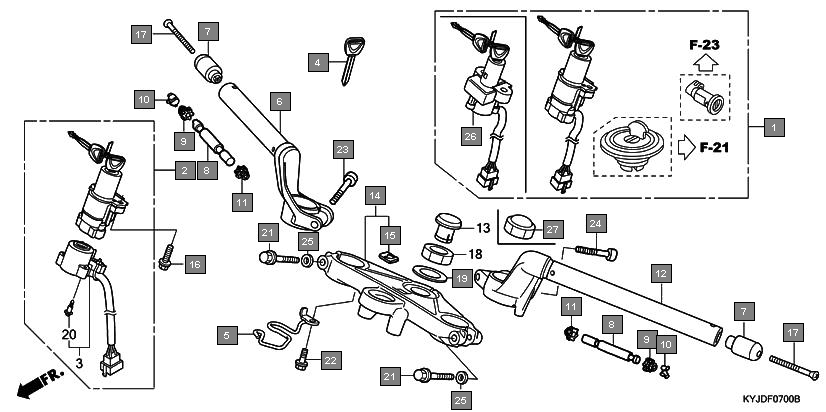

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 35010KYJ900 | KEY SET | 1 |
2 | 35010KYJT00 | KEY SET | 1 |
3 | 35100KYJ901 | SWITCH ASSY., COMBINATION & LOCK | 1 |
4 | 35121MASG01 | KEY, BLANK | 1 |
5 | 35121KSP910 | KEY, BLANK | 1 |
6 | 45158KYJ710 | GUIDE, FR. BRAKE HOSE | 1 |
7 | 53100KYJ900 | PIPE COMP., R. STEERING HANDLE | 1 |
8 | 53103KYJ900 | WEIGHT A, STEERING HANDLE | 2 |
9 | 53104KYJ900 | WEIGHT B, STEERING HANDLE | 2 |
10 | 53107MJ0000 | RUBBER B, HANDLE WEIGHT | 2 |
11 | 53108KR3770 | RING, HANDLE WEIGHT SNAP | 2 |
12 | 53109MV4000 | RUBBER B, HANDLE WEIGHT | 2 |
13 | 53150KYJ900 | PIPE COMP., L. STEERING HANDLE | 1 |
14 | 53300KYJT00 | BRIDGE COMP., FORK TOP | 1 |
15 | 86150KWS601 | EMBLEM, PRODUCT(SJS) | 1 |
16 | 90100KYJ710 | BOLT, COMBINATION SWITCH SETTING | 2 |
17 | 90191KYJ710 | SCREW, OVAL, 6X50 | 2 |
18 | 90503KGA900 | WASHER, STEERING STEM | 1 |
19 | 957010804507 | BOLT, FLANGE, 8X45 | 2 |
20 | 957020804507 | BOLT, FLANGE, 8X45 | 2 |
21 | 960010601207 | BOLT, FLANGE, 6X12 | 1 |
22 | 966000803207 | BOLT, SOCKET, 8X32 | 1 |
23 | 9410208000 | WASHER, PLAIN, 8MM | 2 |
24 | 35100KYJT01 | SWITCH ASSY., COMBINATION & LOCK | 1 |
25 | 90304KSP900 | NUT, STEERING STEM | 1 |
